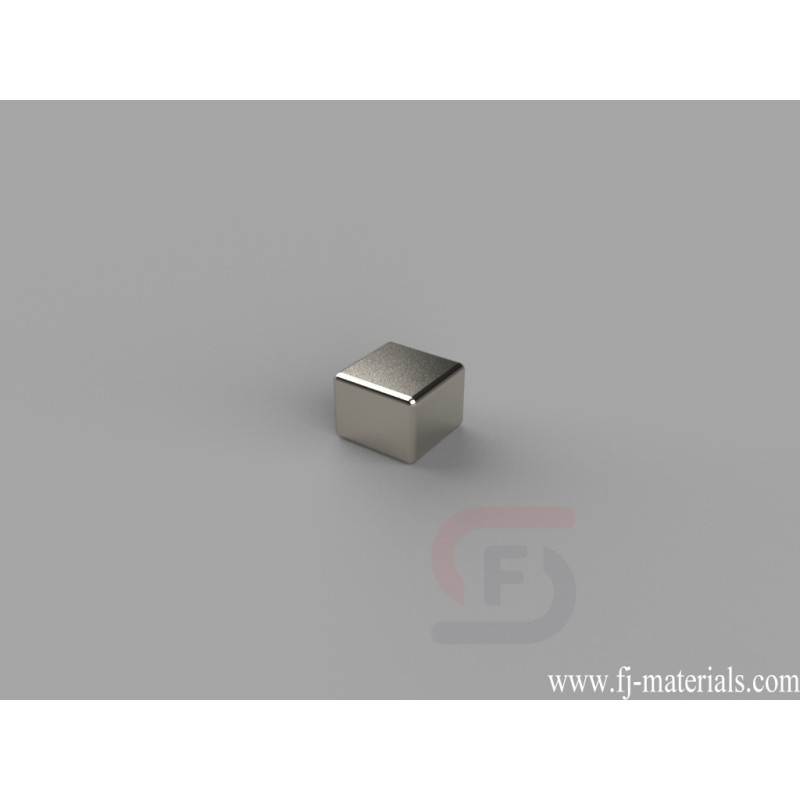

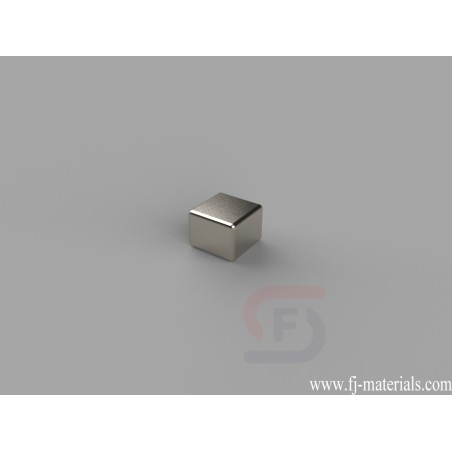

1/4 x 1/4 x 3/16 inch thick Block Magnets | B443
B443 Neodymium Magnets, 1/4 inch x 1/4 inch x 3/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/4" x 1/4" x 3/16" thick, Thru Thickness magnetized. Pull force is approximately 4.74 lbs.
B443 Neodymium Magnet's dimesion is 1/4" x 1/4" x 3/16" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
B443 Neodymium Magnets, 1/4 inch x 1/4 inch x 3/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/4" x 1/4" x 3/16" thick, Thru Thickness magnetized. Pull force is approximately 4.74 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B443
Data sheet
- Item Number
- B443
- Material
- NdFeB
- Grade
- N42
- Size
- 1/4" x 1/4" x 3/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 1.4403 g
- Pull Force
- 4.74 lbs
- Thickness
- B. 3.18-6.35mm
- Length
- B. 3.18-6.35mm
- Width
- B. 3.18-6.35mm
B443 Neodymium Magnets, 1/4 inch x 1/4 inch x 3/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/4" x 1/4" x 3/16" thick, Thru Thickness magnetized. Pull force is approximately 4.74 lbs.
