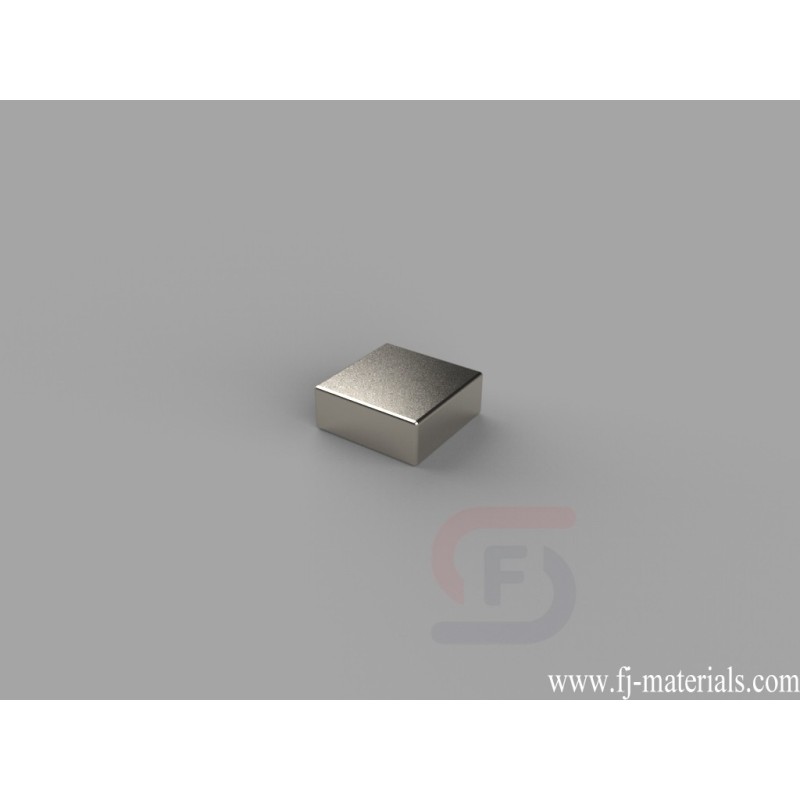

5/16 x 5/16 x 1/8 inch thick Block Magnets | B552
B552 Neodymium Magnets, 5/16 inch x 5/16 inch x 1/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/16" x 5/16" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 3.95 lbs.
B552 Neodymium Magnet's dimesion is 5/16" x 5/16" x 1/8" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
B552 Neodymium Magnets, 5/16 inch x 5/16 inch x 1/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/16" x 5/16" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 3.95 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B552
Data sheet
- Item Number
- B552
- Material
- NdFeB
- Grade
- N42
- Size
- 5/16" x 5/16" x 1/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 1.5003 g
- Pull Force
- 3.95 lbs
- Thickness
- A. 0.00-3.18mm
- Length
- C. 6.35-9.53mm
- Width
- C. 6.35-9.53mm
B552 Neodymium Magnets, 5/16 inch x 5/16 inch x 1/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/16" x 5/16" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 3.95 lbs.
