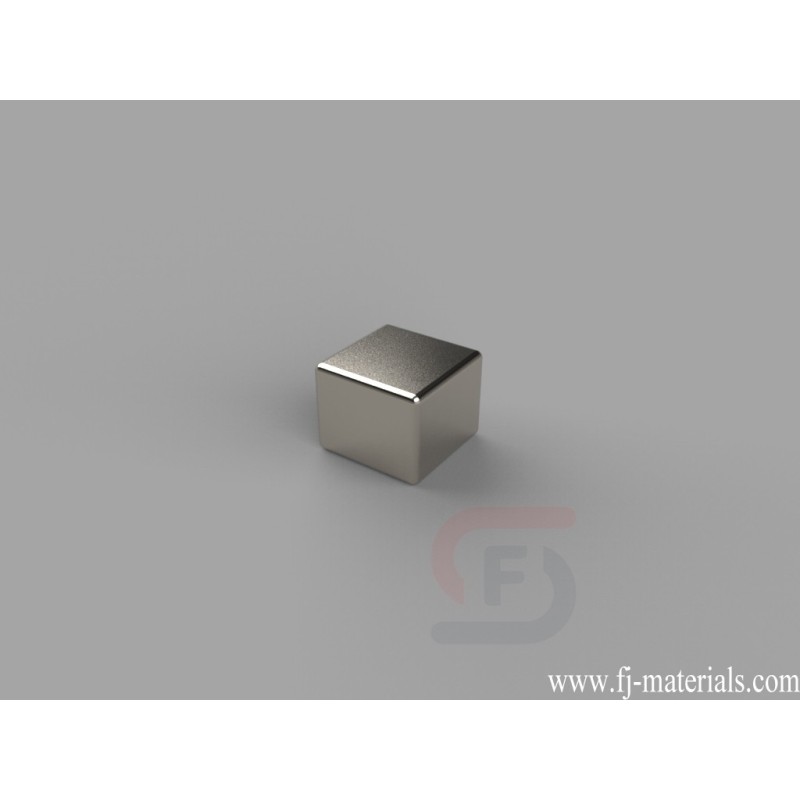

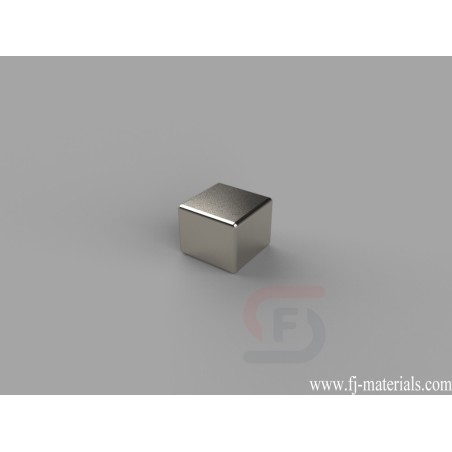

5/16 x 5/16 x 1/4 inch thick Block Magnets | B554
B554 Neodymium Magnets, 5/16 inch x 5/16 inch x 1/4 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/16" x 5/16" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 7.9 lbs.
B554 Neodymium Magnet's dimesion is 5/16" x 5/16" x 1/4" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
B554 Neodymium Magnets, 5/16 inch x 5/16 inch x 1/4 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/16" x 5/16" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 7.9 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B554
Data sheet
- Item Number
- B554
- Material
- NdFeB
- Grade
- N42
- Size
- 5/16" x 5/16" x 1/4" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 3.0006 g
- Pull Force
- 7.9 lbs
- Thickness
- B. 3.18-6.35mm
- Length
- C. 6.35-9.53mm
- Width
- C. 6.35-9.53mm
B554 Neodymium Magnets, 5/16 inch x 5/16 inch x 1/4 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/16" x 5/16" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 7.9 lbs.
