3/8 x 3/16 x 1/4 inch thick Block Magnets | B634

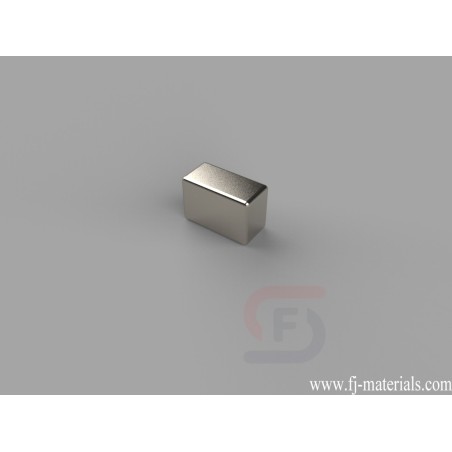

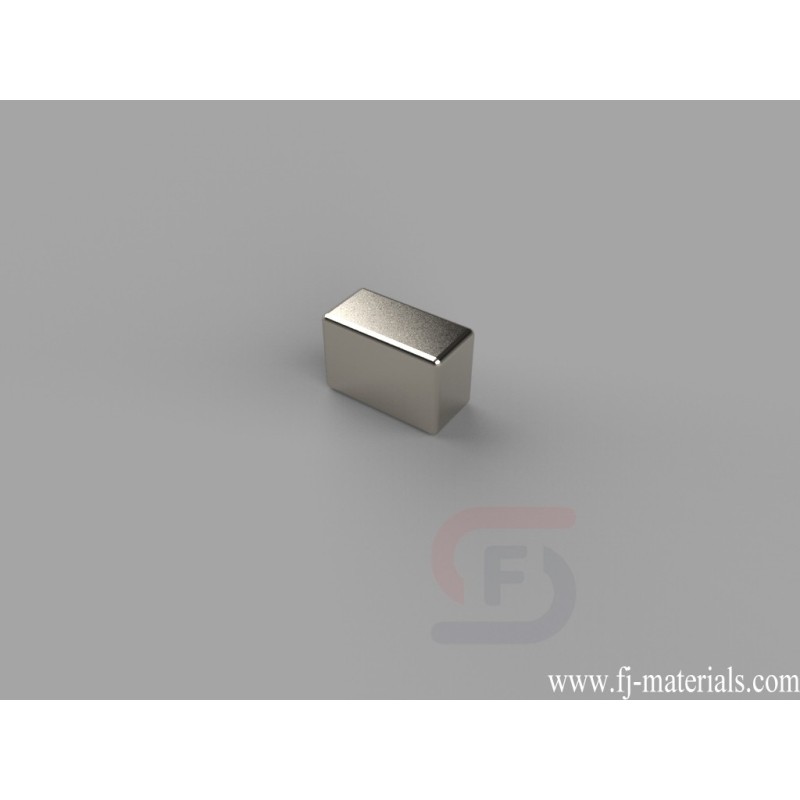

B634 Neodymium Magnets, 3/8 inch x 3/16 inch x 1/4 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/8" x 3/16" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 6.7 lbs.
B634 Neodymium Magnet's dimesion is 3/8" x 3/16" x 1/4" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
B634 Neodymium Magnets, 3/8 inch x 3/16 inch x 1/4 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/8" x 3/16" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 6.7 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B634
Data sheet
- Item Number
- B634
- Material
- NdFeB
- Grade
- N42
- Size
- 3/8" x 3/16" x 1/4" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 2.1604 g
- Pull Force
- 6.7 lbs
- Thickness
- B. 3.18-6.35mm
- Length
- C. 6.35-9.53mm
- Width
- B. 3.18-6.35mm
B634 Neodymium Magnets, 3/8 inch x 3/16 inch x 1/4 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/8" x 3/16" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 6.7 lbs.
