7/16 x 7/16 x 1/16 inch thick Block Magnets | B771

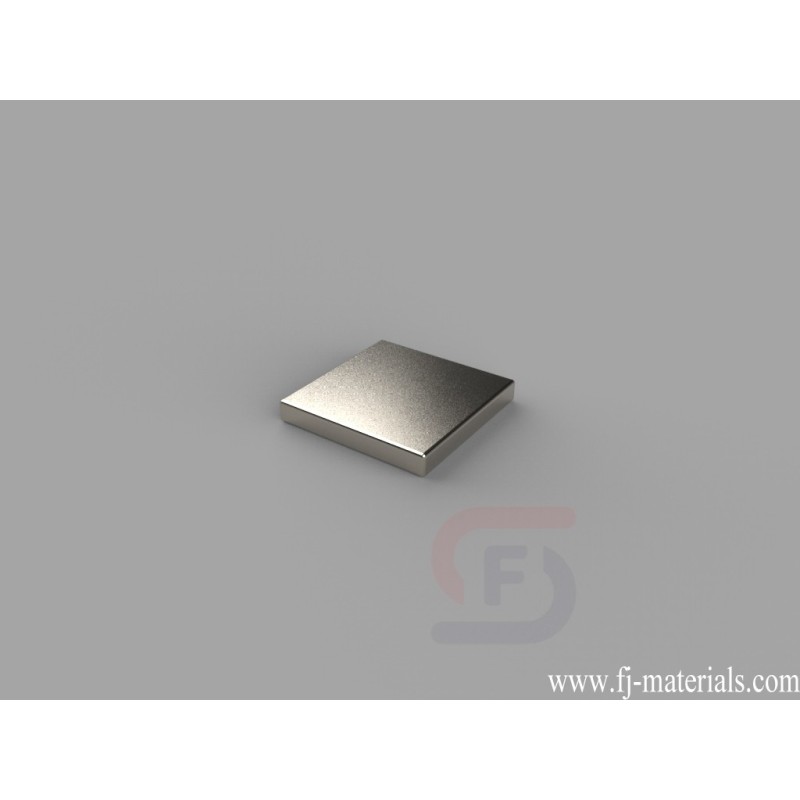

B771 Neodymium Magnets, 7/16 inch x 7/16 inch x 1/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/16" x 7/16" x 1/16" thick, Thru Thickness magnetized. Pull force is approximately 2.76 lbs.
B771 Neodymium Magnet's dimesion is 7/16" x 7/16" x 1/16" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
B771 Neodymium Magnets, 7/16 inch x 7/16 inch x 1/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/16" x 7/16" x 1/16" thick, Thru Thickness magnetized. Pull force is approximately 2.76 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B771
Data sheet
- Item Number
- B771
- Material
- NdFeB
- Grade
- N42
- Size
- 7/16" x 7/16" x 1/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 1.4703 g
- Pull Force
- 2.76 lbs
- Thickness
- A. 0.00-3.18mm
- Length
- D. 9.53-12.7mm
- Width
- D. 9.53-12.7mm
B771 Neodymium Magnets, 7/16 inch x 7/16 inch x 1/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/16" x 7/16" x 1/16" thick, Thru Thickness magnetized. Pull force is approximately 2.76 lbs.
