1/2 x 3/8 x 1/2 inch thick Block Magnets | B868

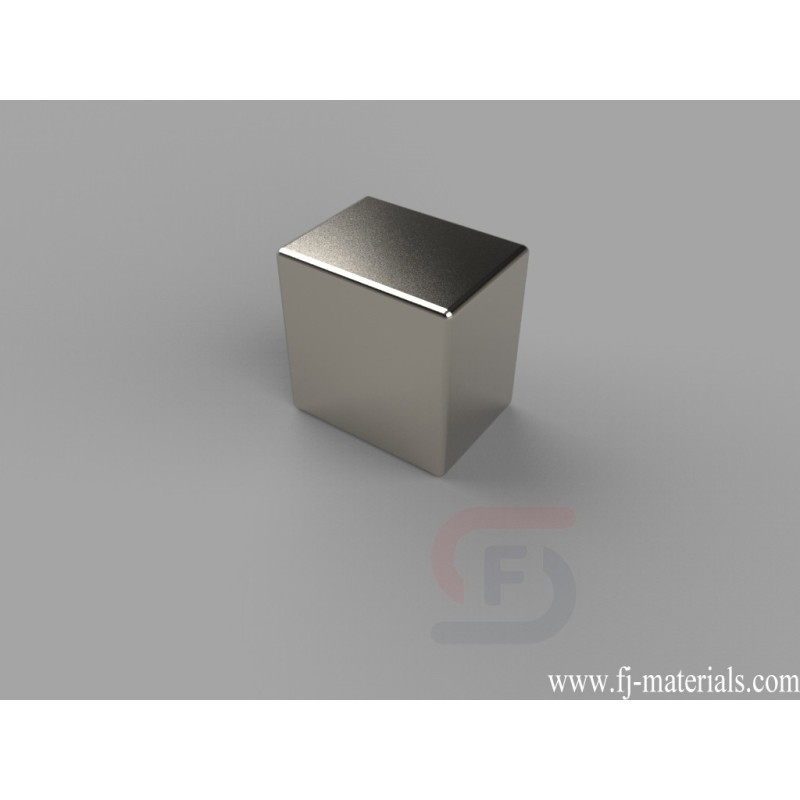

B868 Neodymium Magnets, 1/2 inch x 3/8 inch x 1/2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" x 3/8" x 1/2" thick, Thru Thickness magnetized. Pull force is approximately 21.88 lbs.
B868 Neodymium Magnet's dimesion is 1/2" x 3/8" x 1/2" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
B868 Neodymium Magnets, 1/2 inch x 3/8 inch x 1/2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" x 3/8" x 1/2" thick, Thru Thickness magnetized. Pull force is approximately 21.88 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B868
Data sheet
- Item Number
- B868
- Material
- NdFeB
- Grade
- N42
- Size
- 1/2" x 3/8" x 1/2" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 11.5222 g
- Pull Force
- 21.88 lbs
- Thickness
- D. 9.53-12.7mm
- Length
- D. 9.53-12.7mm
- Width
- C. 6.35-9.53mm
B868 Neodymium Magnets, 1/2 inch x 3/8 inch x 1/2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" x 3/8" x 1/2" thick, Thru Thickness magnetized. Pull force is approximately 21.88 lbs.
