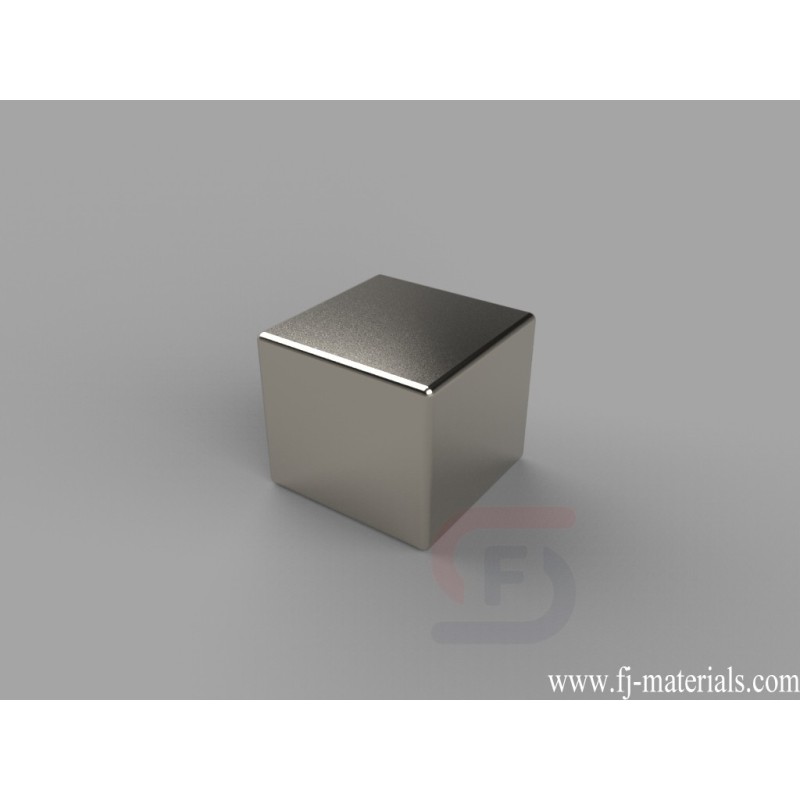

1/2 x 1/2 x 7/16 inch thick Block Magnets | B887
B887 Neodymium Magnets, 1/2 inch x 1/2 inch x 7/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" x 1/2" x 7/16" thick, Thru Thickness magnetized. Pull force is approximately 22.11 lbs.
B887 Neodymium Magnet's dimesion is 1/2" x 1/2" x 7/16" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
B887 Neodymium Magnets, 1/2 inch x 1/2 inch x 7/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" x 1/2" x 7/16" thick, Thru Thickness magnetized. Pull force is approximately 22.11 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B887
Data sheet
- Item Number
- B887
- Material
- NdFeB
- Grade
- N42
- Size
- 1/2" x 1/2" x 7/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 13.4425 g
- Pull Force
- 22.11 lbs
- Thickness
- D. 9.53-12.7mm
- Length
- D. 9.53-12.7mm
- Width
- D. 9.53-12.7mm
B887 Neodymium Magnets, 1/2 inch x 1/2 inch x 7/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1/2" x 1/2" x 7/16" thick, Thru Thickness magnetized. Pull force is approximately 22.11 lbs.
