9/16 x 9/16 x 1/8 inch thick Block Magnets | B992

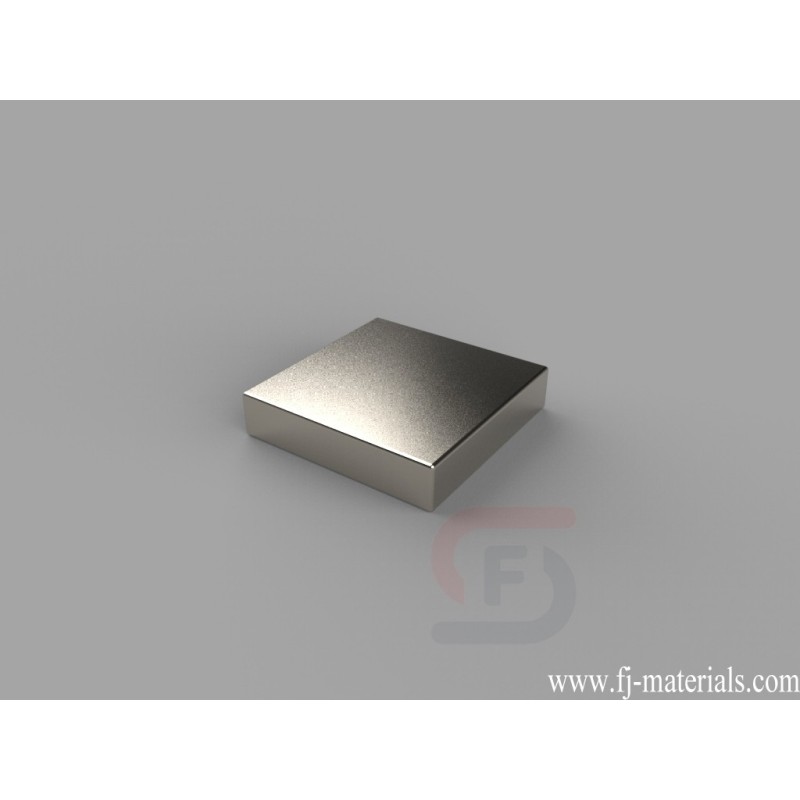

B992 Neodymium Magnets, 9/16 inch x 9/16 inch x 1/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 9/16" x 9/16" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 7.11 lbs.
B992 Neodymium Magnet's dimesion is 9/16" x 9/16" x 1/8" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
B992 Neodymium Magnets, 9/16 inch x 9/16 inch x 1/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 9/16" x 9/16" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 7.11 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B992
Data sheet
- Item Number
- B992
- Material
- NdFeB
- Grade
- N42
- Size
- 9/16" x 9/16" x 1/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 4.8609 g
- Pull Force
- 7.11 lbs
- Thickness
- A. 0.00-3.18mm
- Length
- E. 12.7-19.05mm
- Width
- E. 12.7-19.05mm
B992 Neodymium Magnets, 9/16 inch x 9/16 inch x 1/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 9/16" x 9/16" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 7.11 lbs.
