9/16 x 9/16 x 3/16 inch thick Block Magnets | B993

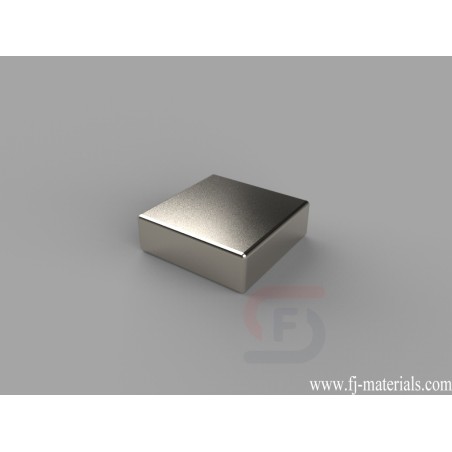

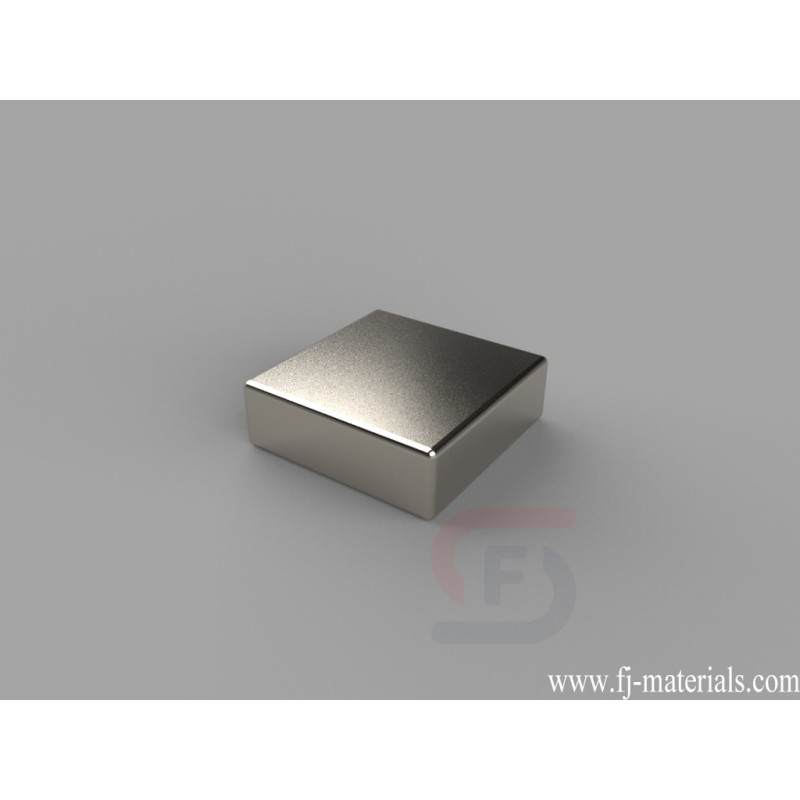

B993 Neodymium Magnets, 9/16 inch x 9/16 inch x 3/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 9/16" x 9/16" x 3/16" thick, Thru Thickness magnetized. Pull force is approximately 10.66 lbs.
B993 Neodymium Magnet's dimesion is 9/16" x 9/16" x 3/16" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
B993 Neodymium Magnets, 9/16 inch x 9/16 inch x 3/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 9/16" x 9/16" x 3/16" thick, Thru Thickness magnetized. Pull force is approximately 10.66 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B993
Data sheet
- Item Number
- B993
- Material
- NdFeB
- Grade
- N42
- Size
- 9/16" x 9/16" x 3/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 7.2914 g
- Pull Force
- 10.66 lbs
- Thickness
- B. 3.18-6.35mm
- Length
- E. 12.7-19.05mm
- Width
- E. 12.7-19.05mm
B993 Neodymium Magnets, 9/16 inch x 9/16 inch x 3/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 9/16" x 9/16" x 3/16" thick, Thru Thickness magnetized. Pull force is approximately 10.66 lbs.
