5/8 x 5/8 x 5/16 inch thick Block Magnets | BAA5

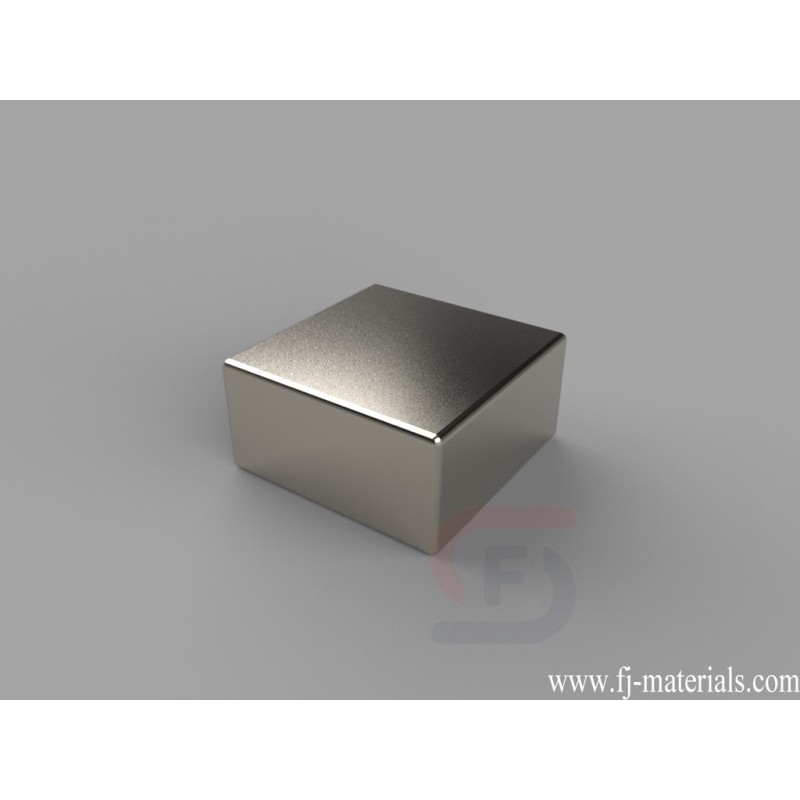

BAA5 Neodymium Magnets, 5/8 inch x 5/8 inch x 5/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/8" x 5/8" x 5/16" thick, Thru Thickness magnetized. Pull force is approximately 19.74 lbs.
BAA5 Neodymium Magnet's dimesion is 5/8" x 5/8" x 5/16" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
BAA5 Neodymium Magnets, 5/8 inch x 5/8 inch x 5/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/8" x 5/8" x 5/16" thick, Thru Thickness magnetized. Pull force is approximately 19.74 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BAA5
Data sheet
- Item Number
- BAA5
- Material
- NdFeB
- Grade
- N42
- Size
- 5/8" x 5/8" x 5/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 15.0028 g
- Pull Force
- 19.74 lbs
- Thickness
- C. 6.35-9.53mm
- Length
- E. 12.7-19.05mm
- Width
- E. 12.7-19.05mm
BAA5 Neodymium Magnets, 5/8 inch x 5/8 inch x 5/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 5/8" x 5/8" x 5/16" thick, Thru Thickness magnetized. Pull force is approximately 19.74 lbs.
