3/4 x 1/16 x 1/8 inch thick Block Magnets | BC12

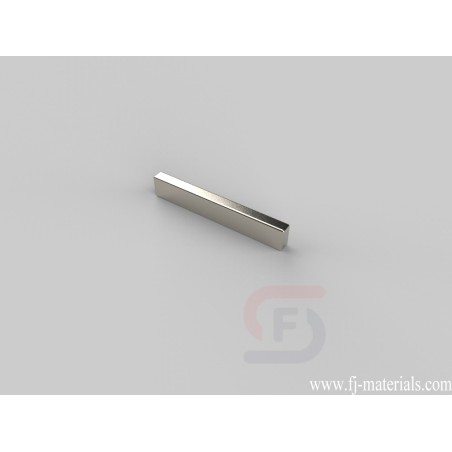

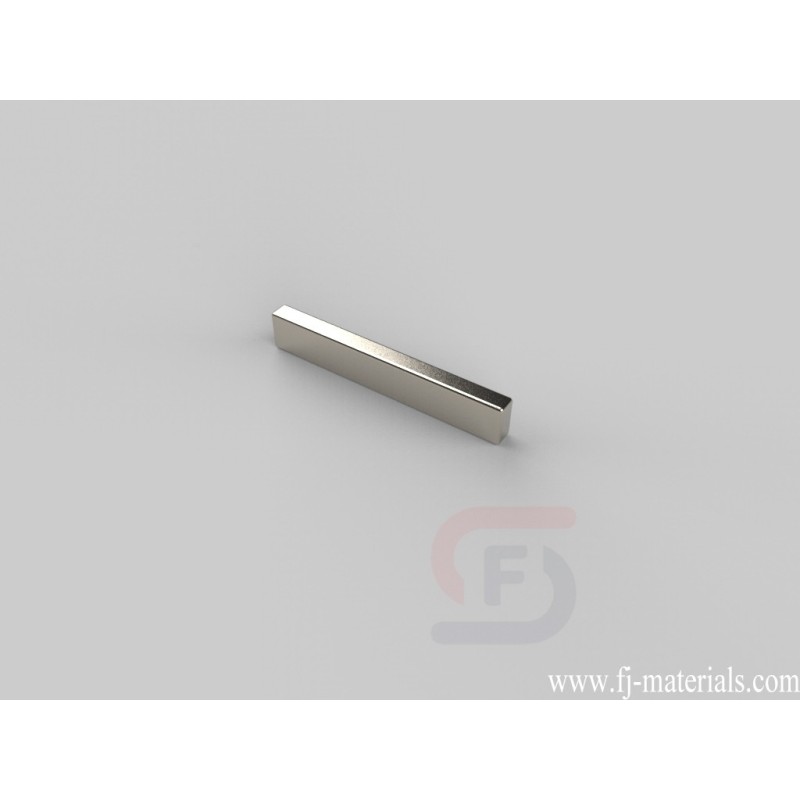

BC12 Neodymium Magnets, 3/4 inch x 1/16 inch x 1/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" x 1/16" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 2.73 lbs.
BC12 Neodymium Magnet's dimesion is 3/4" x 1/16" x 1/8" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
BC12 Neodymium Magnets, 3/4 inch x 1/16 inch x 1/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" x 1/16" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 2.73 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BC12
Data sheet
- Item Number
- BC12
- Material
- NdFeB
- Grade
- N42
- Size
- 3/4" x 1/16" x 1/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.7201 g
- Pull Force
- 2.73 lbs
- Thickness
- A. 0.00-3.18mm
- Length
- E. 12.7-19.05mm
- Width
- A. 0.00-3.18mm
BC12 Neodymium Magnets, 3/4 inch x 1/16 inch x 1/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" x 1/16" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 2.73 lbs.
