3/4 x 1/16 x 1/2 inch thick Block Magnets | BC18

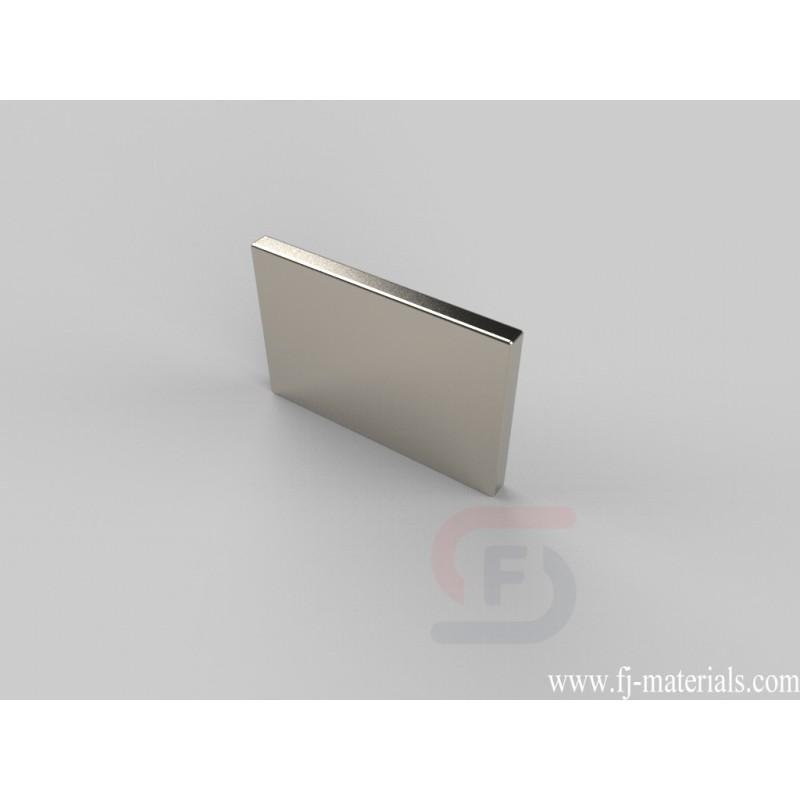

BC18 Neodymium Magnets, 3/4 inch x 1/16 inch x 1/2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" x 1/16" x 1/2" thick, Thru Thickness magnetized. Pull force is approximately 10.94 lbs.
BC18 Neodymium Magnet's dimesion is 3/4" x 1/16" x 1/2" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
BC18 Neodymium Magnets, 3/4 inch x 1/16 inch x 1/2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" x 1/16" x 1/2" thick, Thru Thickness magnetized. Pull force is approximately 10.94 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BC18
Data sheet
- Item Number
- BC18
- Material
- NdFeB
- Grade
- N42
- Size
- 3/4" x 1/16" x 1/2" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 2.8805 g
- Pull Force
- 10.94 lbs
- Thickness
- D. 9.53-12.7mm
- Length
- E. 12.7-19.05mm
- Width
- A. 0.00-3.18mm
BC18 Neodymium Magnets, 3/4 inch x 1/16 inch x 1/2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" x 1/16" x 1/2" thick, Thru Thickness magnetized. Pull force is approximately 10.94 lbs.
