3/4 x 3/4 x 5/16 inch thick Block Magnets | BCC5

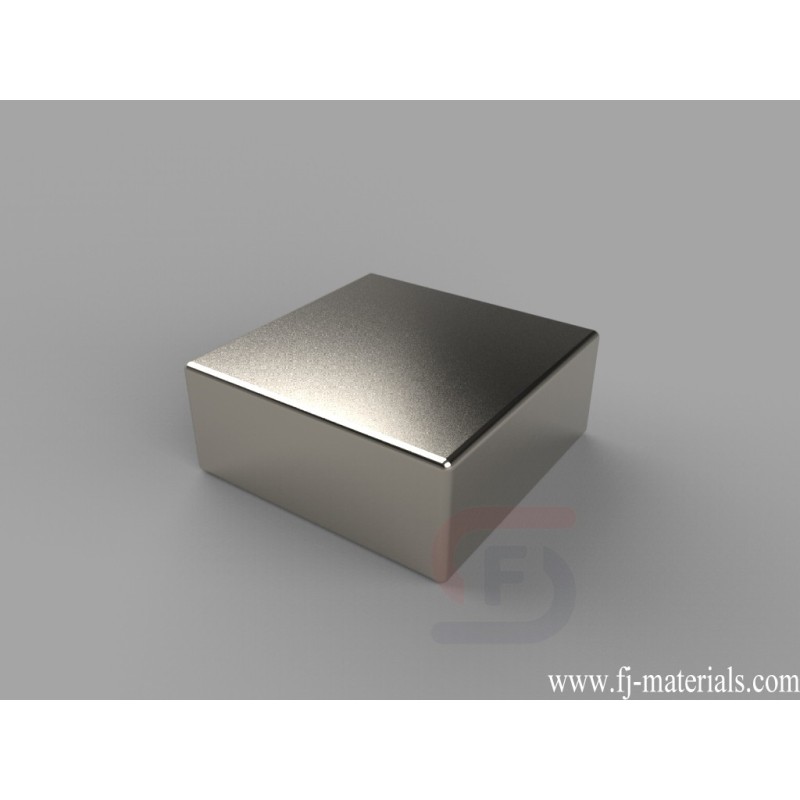

BCC5 Neodymium Magnets, 3/4 inch x 3/4 inch x 5/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" x 3/4" x 5/16" thick, Thru Thickness magnetized. Pull force is approximately 23.69 lbs.
BCC5 Neodymium Magnet's dimesion is 3/4" x 3/4" x 5/16" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
BCC5 Neodymium Magnets, 3/4 inch x 3/4 inch x 5/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" x 3/4" x 5/16" thick, Thru Thickness magnetized. Pull force is approximately 23.69 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BCC5
Data sheet
- Item Number
- BCC5
- Material
- NdFeB
- Grade
- N42
- Size
- 3/4" x 3/4" x 5/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 21.604 g
- Pull Force
- 23.69 lbs
- Thickness
- C. 6.35-9.53mm
- Length
- E. 12.7-19.05mm
- Width
- E. 12.7-19.05mm
BCC5 Neodymium Magnets, 3/4 inch x 3/4 inch x 5/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" x 3/4" x 5/16" thick, Thru Thickness magnetized. Pull force is approximately 23.69 lbs.
