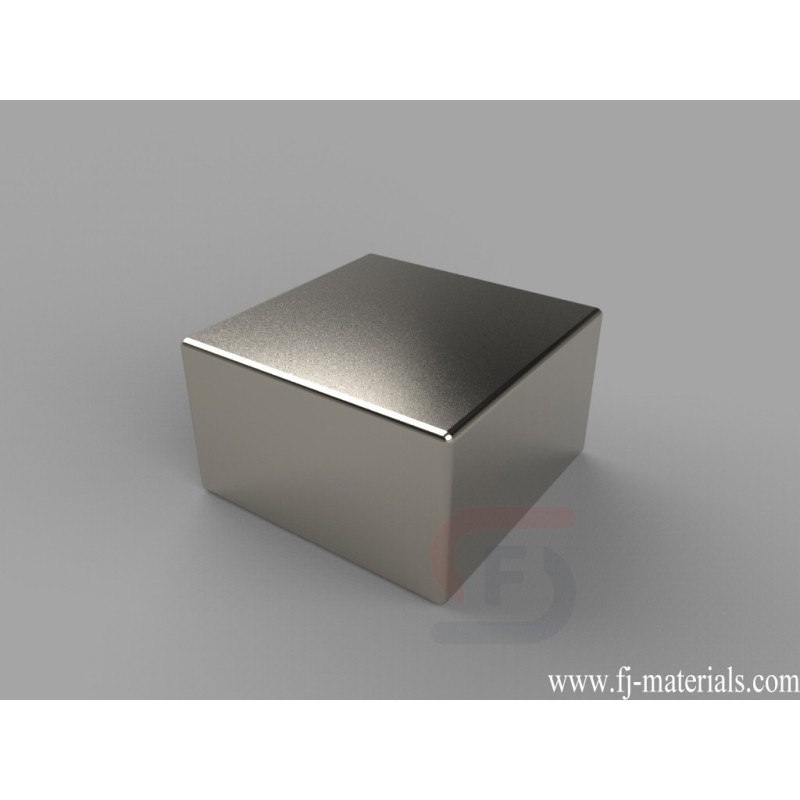

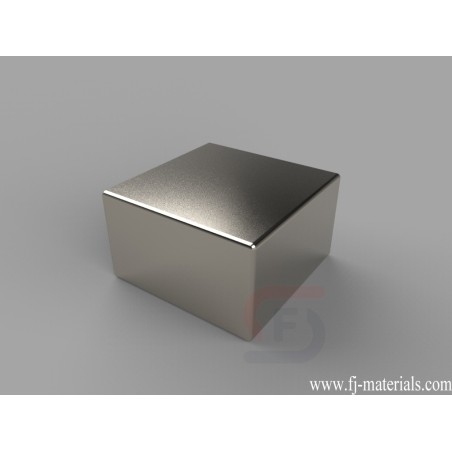

3/4 x 3/4 x 7/16 inch thick Block Magnets | BCC7
BCC7 Neodymium Magnets, 3/4 inch x 3/4 inch x 7/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" x 3/4" x 7/16" thick, Thru Thickness magnetized. Pull force is approximately 33.16 lbs.
BCC7 Neodymium Magnet's dimesion is 3/4" x 3/4" x 7/16" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
BCC7 Neodymium Magnets, 3/4 inch x 3/4 inch x 7/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" x 3/4" x 7/16" thick, Thru Thickness magnetized. Pull force is approximately 33.16 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BCC7
Data sheet
- Item Number
- BCC7
- Material
- NdFeB
- Grade
- N42
- Size
- 3/4" x 3/4" x 7/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 30.2457 g
- Pull Force
- 33.16 lbs
- Thickness
- D. 9.53-12.7mm
- Length
- E. 12.7-19.05mm
- Width
- E. 12.7-19.05mm
BCC7 Neodymium Magnets, 3/4 inch x 3/4 inch x 7/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" x 3/4" x 7/16" thick, Thru Thickness magnetized. Pull force is approximately 33.16 lbs.
