3/4 x 3/4 x 9/16 inch thick Block Magnets | BCC9

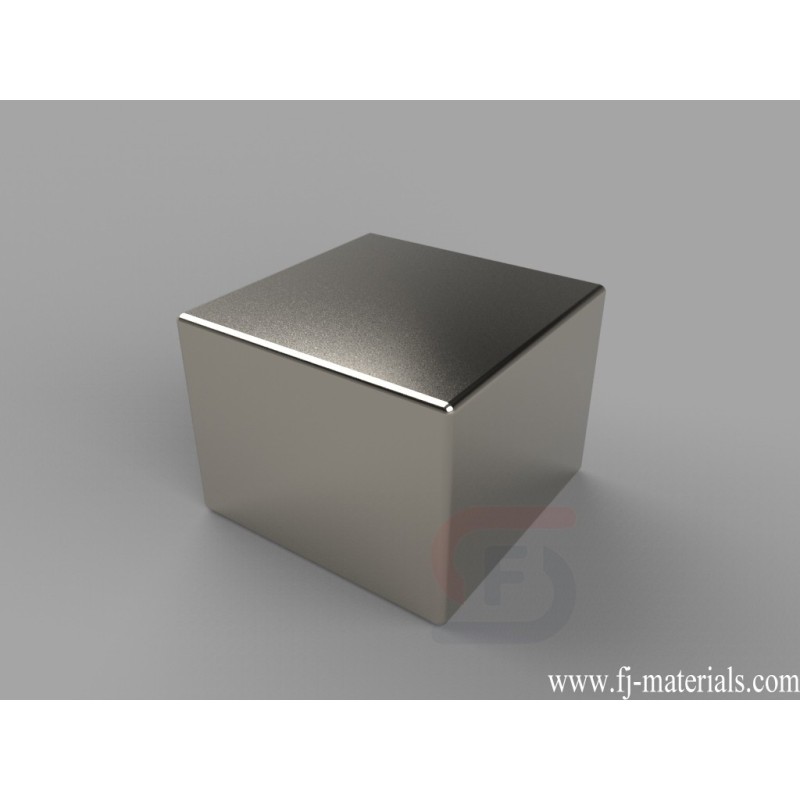

BCC9 Neodymium Magnets, 3/4 inch x 3/4 inch x 9/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" x 3/4" x 9/16" thick, Thru Thickness magnetized. Pull force is approximately 42.63 lbs.
BCC9 Neodymium Magnet's dimesion is 3/4" x 3/4" x 9/16" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
BCC9 Neodymium Magnets, 3/4 inch x 3/4 inch x 9/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" x 3/4" x 9/16" thick, Thru Thickness magnetized. Pull force is approximately 42.63 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BCC9
Data sheet
- Item Number
- BCC9
- Material
- NdFeB
- Grade
- N42
- Size
- 3/4" x 3/4" x 9/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 38.8873 g
- Pull Force
- 42.63 lbs
- Thickness
- E. 12.7-19.05mm
- Length
- E. 12.7-19.05mm
- Width
- E. 12.7-19.05mm
BCC9 Neodymium Magnets, 3/4 inch x 3/4 inch x 9/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" x 3/4" x 9/16" thick, Thru Thickness magnetized. Pull force is approximately 42.63 lbs.
