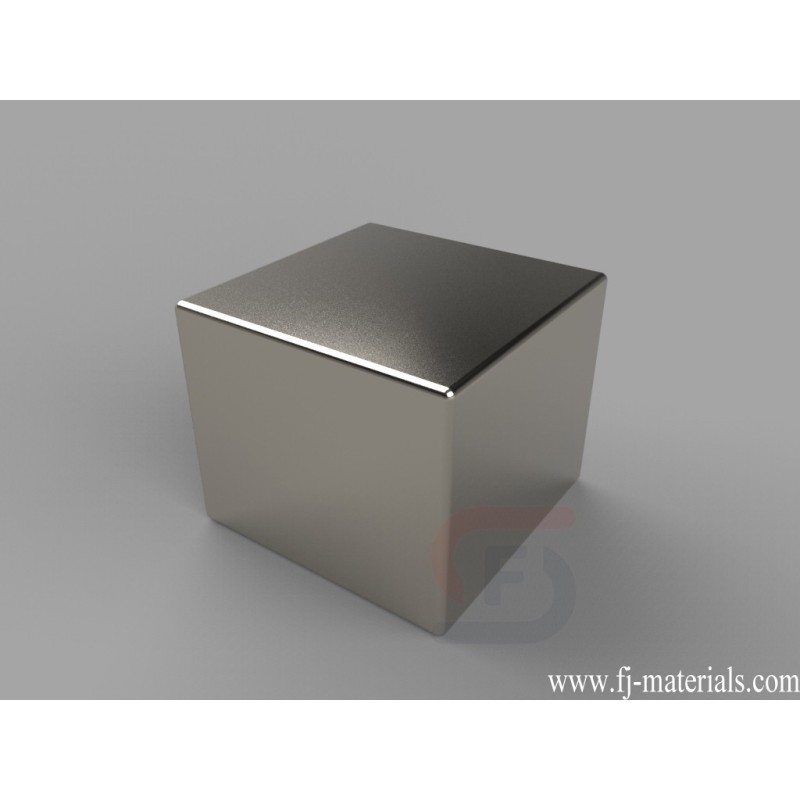

3/4 x 3/4 x 5/8 inch thick Block Magnets | BCCA
BCCA Neodymium Magnets, 3/4 inch x 3/4 inch x 5/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" x 3/4" x 5/8" thick, Thru Thickness magnetized. Pull force is approximately 47.37 lbs.
BCCA Neodymium Magnet's dimesion is 3/4" x 3/4" x 5/8" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
BCCA Neodymium Magnets, 3/4 inch x 3/4 inch x 5/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" x 3/4" x 5/8" thick, Thru Thickness magnetized. Pull force is approximately 47.37 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BCCA
Data sheet
- Item Number
- BCCA
- Material
- NdFeB
- Grade
- N42
- Size
- 3/4" x 3/4" x 5/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 43.2081 g
- Pull Force
- 47.37 lbs
- Thickness
- E. 12.7-19.05mm
- Length
- E. 12.7-19.05mm
- Width
- E. 12.7-19.05mm
BCCA Neodymium Magnets, 3/4 inch x 3/4 inch x 5/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" x 3/4" x 5/8" thick, Thru Thickness magnetized. Pull force is approximately 47.37 lbs.
