7/8 x 7/8 x 1/2 inch thick Block Magnets | BEE8

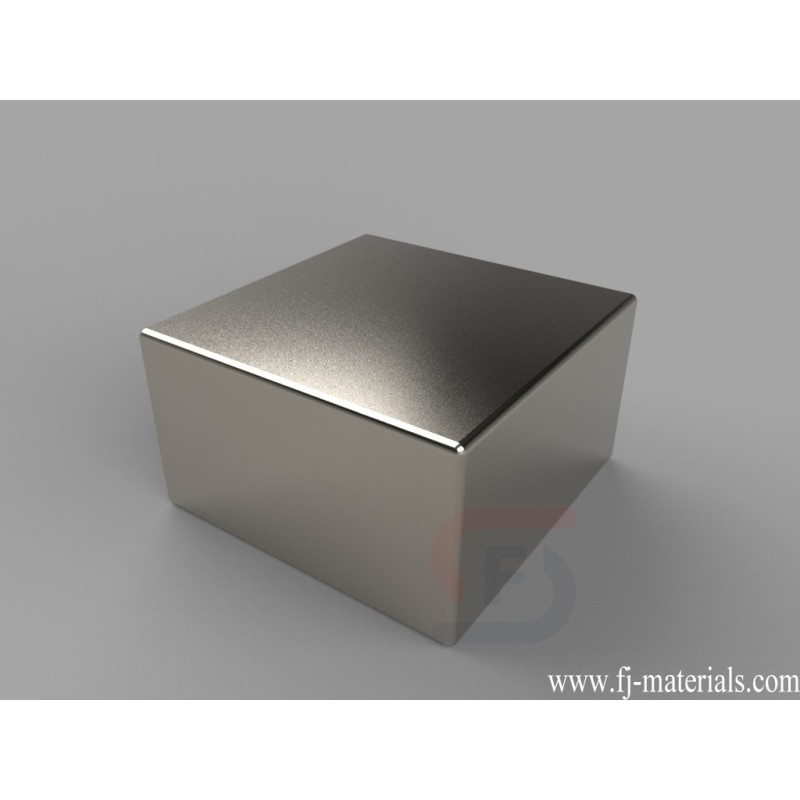

BEE8 Neodymium Magnets, 7/8 inch x 7/8 inch x 1/2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/8" x 7/8" x 1/2" thick, Thru Thickness magnetized. Pull force is approximately 44.21 lbs.
BEE8 Neodymium Magnet's dimesion is 7/8" x 7/8" x 1/2" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
BEE8 Neodymium Magnets, 7/8 inch x 7/8 inch x 1/2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/8" x 7/8" x 1/2" thick, Thru Thickness magnetized. Pull force is approximately 44.21 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BEE8
Data sheet
- Item Number
- BEE8
- Material
- NdFeB
- Grade
- N42
- Size
- 7/8" x 7/8" x 1/2" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 47.0488 g
- Pull Force
- 44.21 lbs
- Thickness
- D. 9.53-12.7mm
- Length
- F. 19.05-25.4mm
- Width
- F. 19.05-25.4mm
BEE8 Neodymium Magnets, 7/8 inch x 7/8 inch x 1/2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 7/8" x 7/8" x 1/2" thick, Thru Thickness magnetized. Pull force is approximately 44.21 lbs.
