3/4 x 3/8 x 3/8 inch thick Block Magnets | BC66

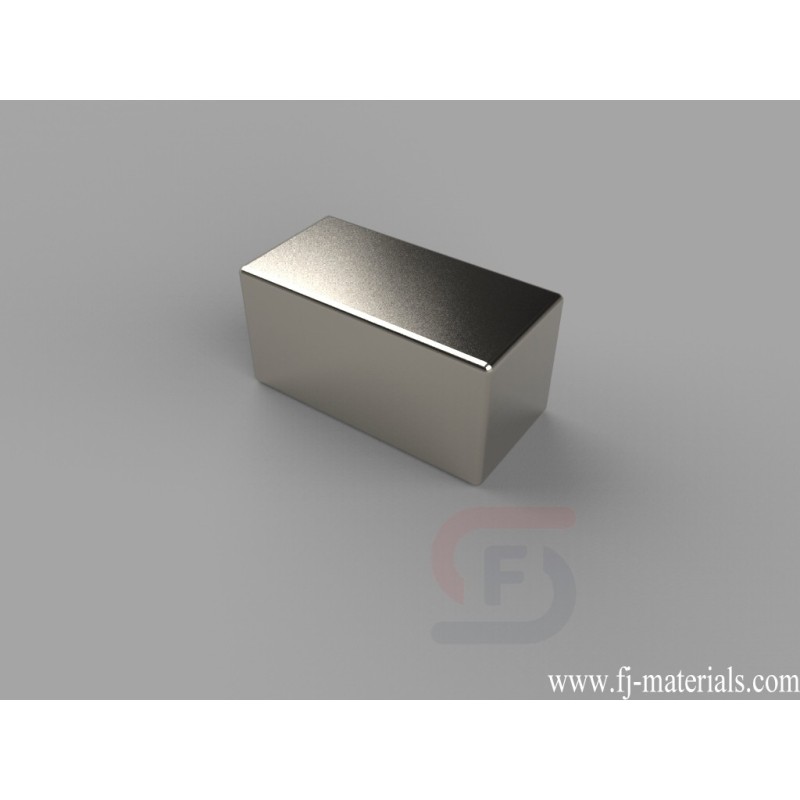

BC66 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" x 3/8" x 3/8" thick, Thru Thickness magnetized. Pull force is approximately 18.21 lbs.
Yiwu Fenjiao E-commerce Firm supply BC66 Neodymium Block Magnets with high quality at competitive price.
BC66 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" x 3/8" x 3/8" thick, Thru Thickness magnetized. Pull force is approximately 18.21 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BC66
Data sheet
- Item Number
- BC66
- Material
- NdFeB
- Grade
- N42
- Size
- 3/4" x 3/8" x 3/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.457 oz. (12.96 g)
- Pull Force
- 18.21 lbs
- Thickness
- C. 6.35-9.53mm
- Length
- E. 12.7-19.05mm
- Width
- C. 6.35-9.53mm
