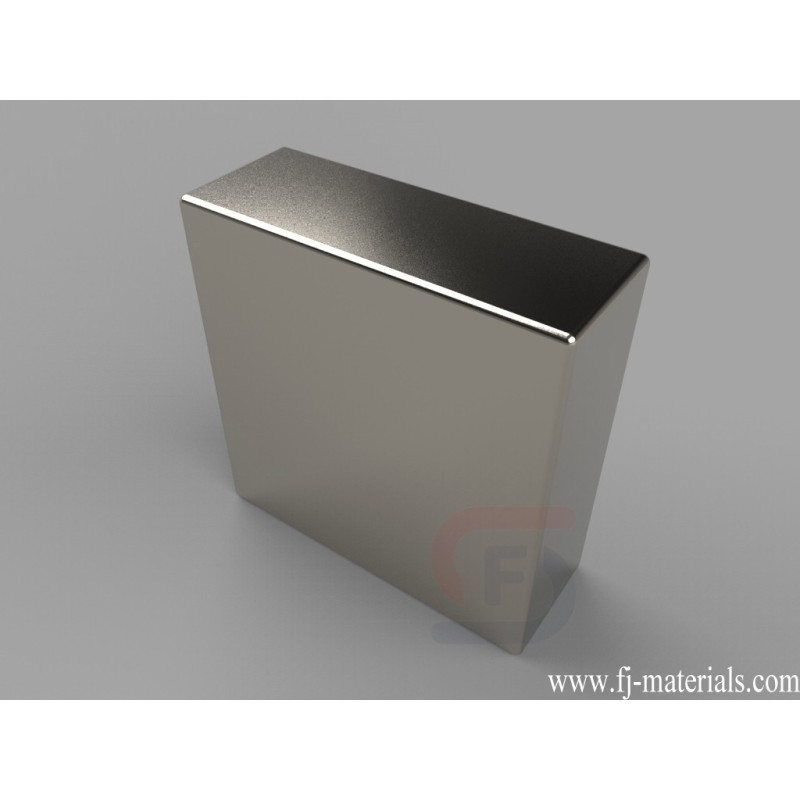

1 x 3/8 x 1 inch thick Block Magnets | BX06X0
BX06X0 Neodymium Magnets, 1 inch x 3/8 inch x 1 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" x 3/8" x 1" thick, Thru Thickness magnetized. Pull force is approximately 61.89 lbs.
BX06X0 Neodymium Magnet's dimesion is 1" x 3/8" x 1" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
BX06X0 Neodymium Magnets, 1 inch x 3/8 inch x 1 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" x 3/8" x 1" thick, Thru Thickness magnetized. Pull force is approximately 61.89 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BX06X0
Data sheet
- Item Number
- BX06X0
- Material
- NdFeB
- Grade
- N42
- Size
- 1" x 3/8" x 1" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 46.0886 g
- Pull Force
- 61.89 lbs
- Thickness
- F. 19.05-25.4mm
- Length
- F. 19.05-25.4mm
- Width
- C. 6.35-9.53mm
BX06X0 Neodymium Magnets, 1 inch x 3/8 inch x 1 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" x 3/8" x 1" thick, Thru Thickness magnetized. Pull force is approximately 61.89 lbs.
