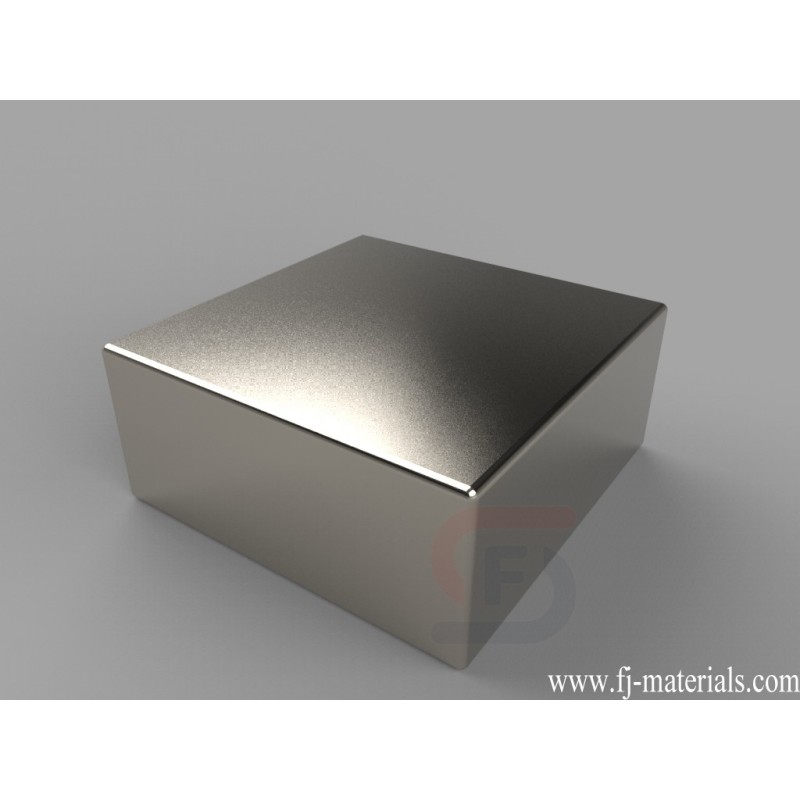

1 x 1 x 7/16 inch thick Block Magnets | BX0X07
BX0X07 Neodymium Magnets, 1 inch x 1 inch x 7/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" x 1" x 7/16" thick, Thru Thickness magnetized. Pull force is approximately 44.21 lbs.
BX0X07 Neodymium Magnet's dimesion is 1" x 1" x 7/16" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
BX0X07 Neodymium Magnets, 1 inch x 1 inch x 7/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" x 1" x 7/16" thick, Thru Thickness magnetized. Pull force is approximately 44.21 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BX0X07
Data sheet
- Item Number
- BX0X07
- Material
- NdFeB
- Grade
- N42
- Size
- 1" x 1" x 7/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 53.7701 g
- Pull Force
- 44.21 lbs
- Thickness
- D. 9.53-12.7mm
- Length
- F. 19.05-25.4mm
- Width
- F. 19.05-25.4mm
BX0X07 Neodymium Magnets, 1 inch x 1 inch x 7/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" x 1" x 7/16" thick, Thru Thickness magnetized. Pull force is approximately 44.21 lbs.
