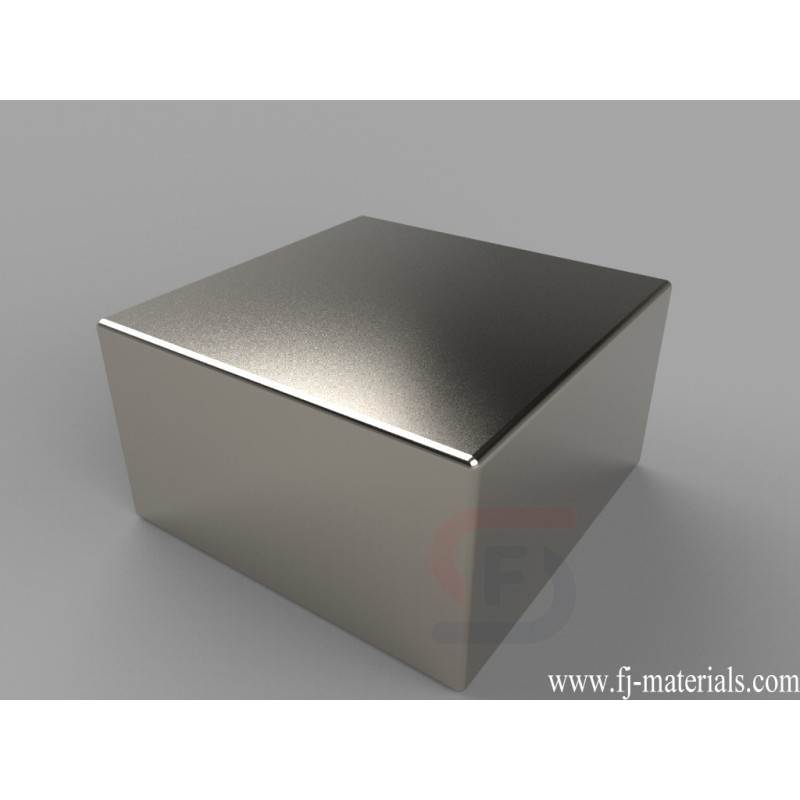

1 x 1 x 9/16 inch thick Block Magnets | BX0X09
BX0X09 Neodymium Magnets, 1 inch x 1 inch x 9/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" x 1" x 9/16" thick, Thru Thickness magnetized. Pull force is approximately 56.85 lbs.
BX0X09 Neodymium Magnet's dimesion is 1" x 1" x 9/16" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
BX0X09 Neodymium Magnets, 1 inch x 1 inch x 9/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" x 1" x 9/16" thick, Thru Thickness magnetized. Pull force is approximately 56.85 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BX0X09
Data sheet
- Item Number
- BX0X09
- Material
- NdFeB
- Grade
- N42
- Size
- 1" x 1" x 9/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 69.1329 g
- Pull Force
- 56.85 lbs
- Thickness
- E. 12.7-19.05mm
- Length
- F. 19.05-25.4mm
- Width
- F. 19.05-25.4mm
BX0X09 Neodymium Magnets, 1 inch x 1 inch x 9/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" x 1" x 9/16" thick, Thru Thickness magnetized. Pull force is approximately 56.85 lbs.
