1 1/2 x 1 x 1 1/2 inch thick Block Magnets | BX8X0X8

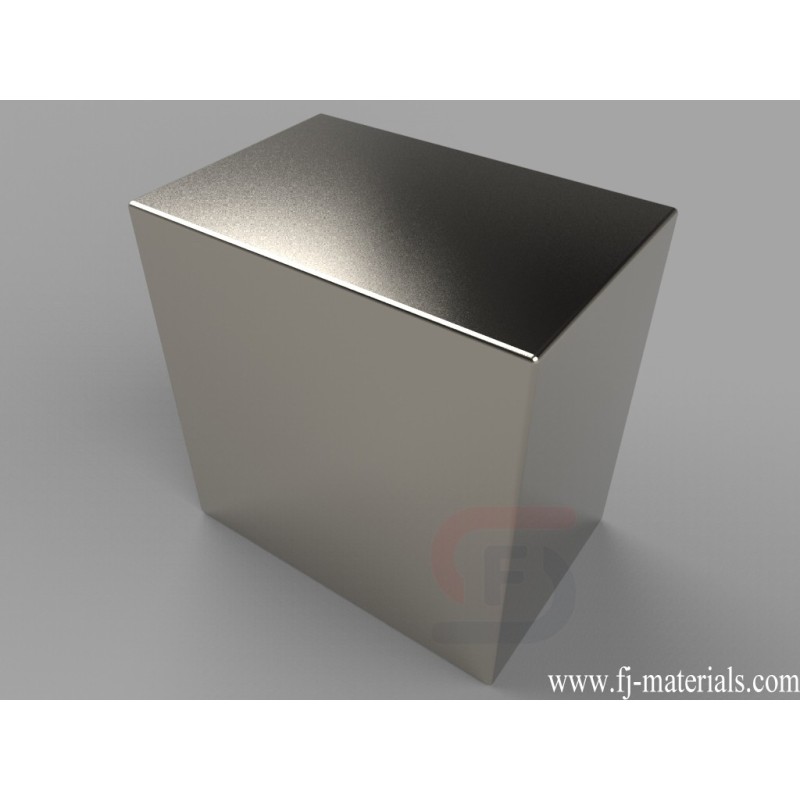

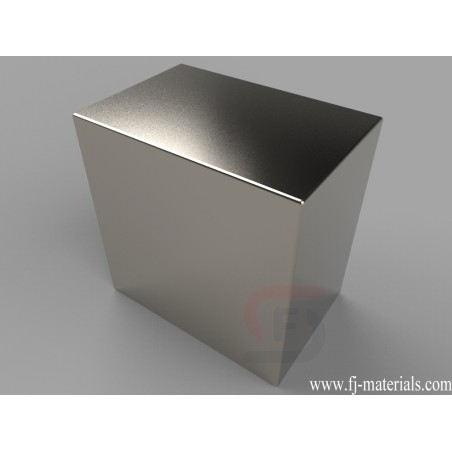

BX8X0X8 Neodymium Magnets, 1 1/2 inch x 1 inch x 1 1/2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/2" x 1" x 1 1/2" thick, Thru Thickness magnetized. Pull force is approximately 185.66 lbs.
BX8X0X8 Neodymium Magnet's dimesion is 1 1/2" x 1" x 1 1/2" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
BX8X0X8 Neodymium Magnets, 1 1/2 inch x 1 inch x 1 1/2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/2" x 1" x 1 1/2" thick, Thru Thickness magnetized. Pull force is approximately 185.66 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BX8X0X8
Data sheet
- Item Number
- BX8X0X8
- Material
- NdFeB
- Grade
- N42
- Size
- 1 1/2" x 1" x 1 1/2" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 276.5317 g
- Pull Force
- 185.66 lbs
- Thickness
- G. 25.4-50.8mm
- Length
- G. 25.4-50.8mm
- Width
- F. 19.05-25.4mm
BX8X0X8 Neodymium Magnets, 1 1/2 inch x 1 inch x 1 1/2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/2" x 1" x 1 1/2" thick, Thru Thickness magnetized. Pull force is approximately 185.66 lbs.
