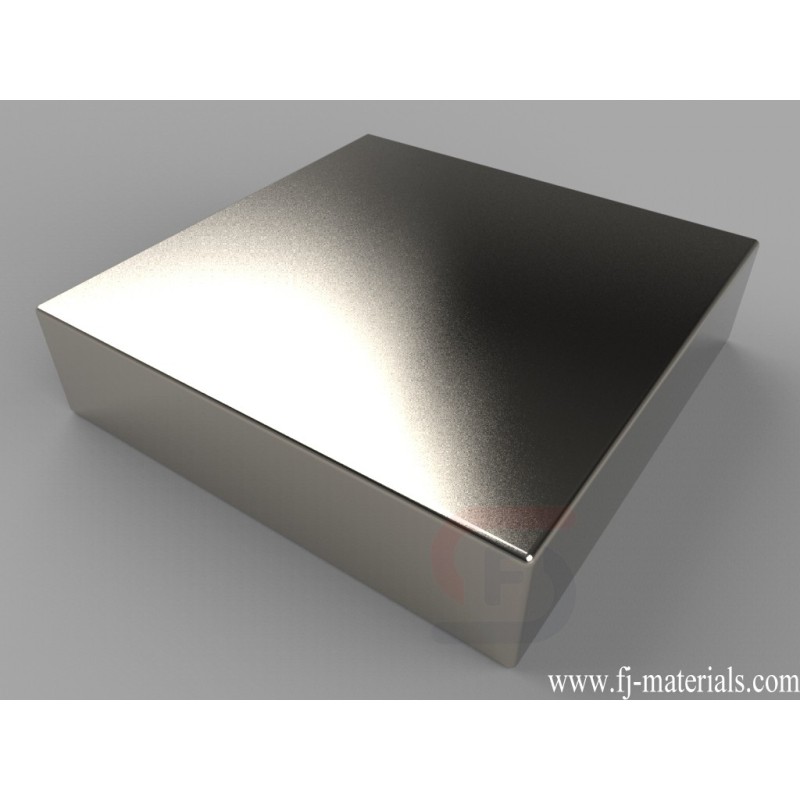

1 1/2 x 1 1/2 x 3/8 inch thick Block Magnets | BX8X86
BX8X86 Neodymium Magnets, 1 1/2 inch x 1 1/2 inch x 3/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/2" x 1 1/2" x 3/8" thick, Thru Thickness magnetized. Pull force is approximately 56.85 lbs.
BX8X86 Neodymium Magnet's dimesion is 1 1/2" x 1 1/2" x 3/8" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
BX8X86 Neodymium Magnets, 1 1/2 inch x 1 1/2 inch x 3/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/2" x 1 1/2" x 3/8" thick, Thru Thickness magnetized. Pull force is approximately 56.85 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BX8X86
Data sheet
- Item Number
- BX8X86
- Material
- NdFeB
- Grade
- N42
- Size
- 1 1/2" x 1 1/2" x 3/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 103.6994 g
- Pull Force
- 56.85 lbs
- Thickness
- C. 6.35-9.53mm
- Length
- G. 25.4-50.8mm
- Width
- G. 25.4-50.8mm
BX8X86 Neodymium Magnets, 1 1/2 inch x 1 1/2 inch x 3/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/2" x 1 1/2" x 3/8" thick, Thru Thickness magnetized. Pull force is approximately 56.85 lbs.
