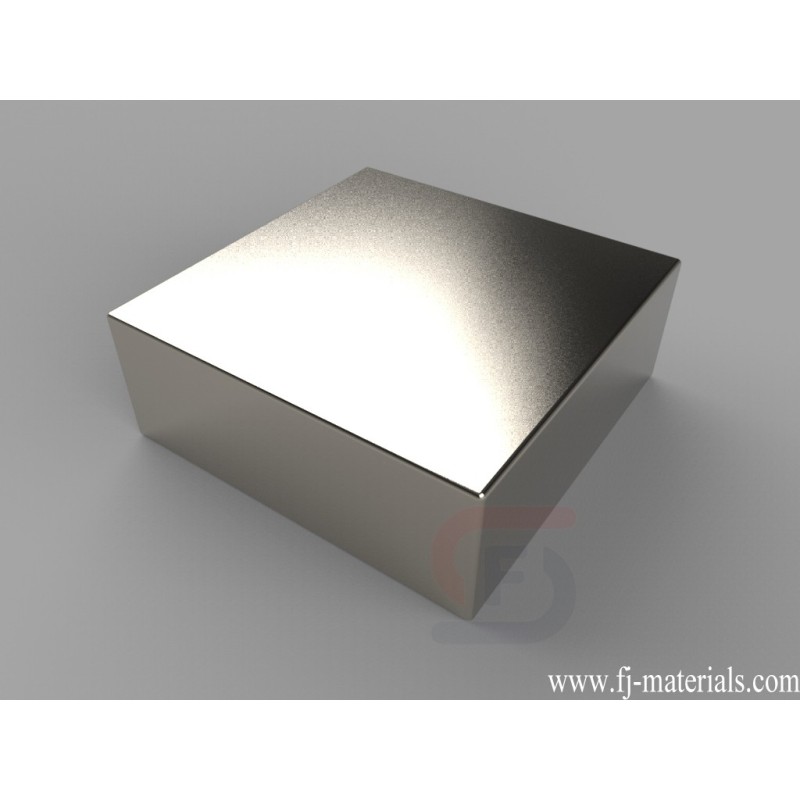

1 1/2 x 1 1/2 x 9/16 inch thick Block Magnets | BX8X89
BX8X89 Neodymium Magnets, 1 1/2 inch x 1 1/2 inch x 9/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/2" x 1 1/2" x 9/16" thick, Thru Thickness magnetized. Pull force is approximately 85.27 lbs.
BX8X89 Neodymium Magnet's dimesion is 1 1/2" x 1 1/2" x 9/16" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
BX8X89 Neodymium Magnets, 1 1/2 inch x 1 1/2 inch x 9/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/2" x 1 1/2" x 9/16" thick, Thru Thickness magnetized. Pull force is approximately 85.27 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BX8X89
Data sheet
- Item Number
- BX8X89
- Material
- NdFeB
- Grade
- N42
- Size
- 1 1/2" x 1 1/2" x 9/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 155.5491 g
- Pull Force
- 85.27 lbs
- Thickness
- E. 12.7-19.05mm
- Length
- G. 25.4-50.8mm
- Width
- G. 25.4-50.8mm
BX8X89 Neodymium Magnets, 1 1/2 inch x 1 1/2 inch x 9/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1 1/2" x 1 1/2" x 9/16" thick, Thru Thickness magnetized. Pull force is approximately 85.27 lbs.
