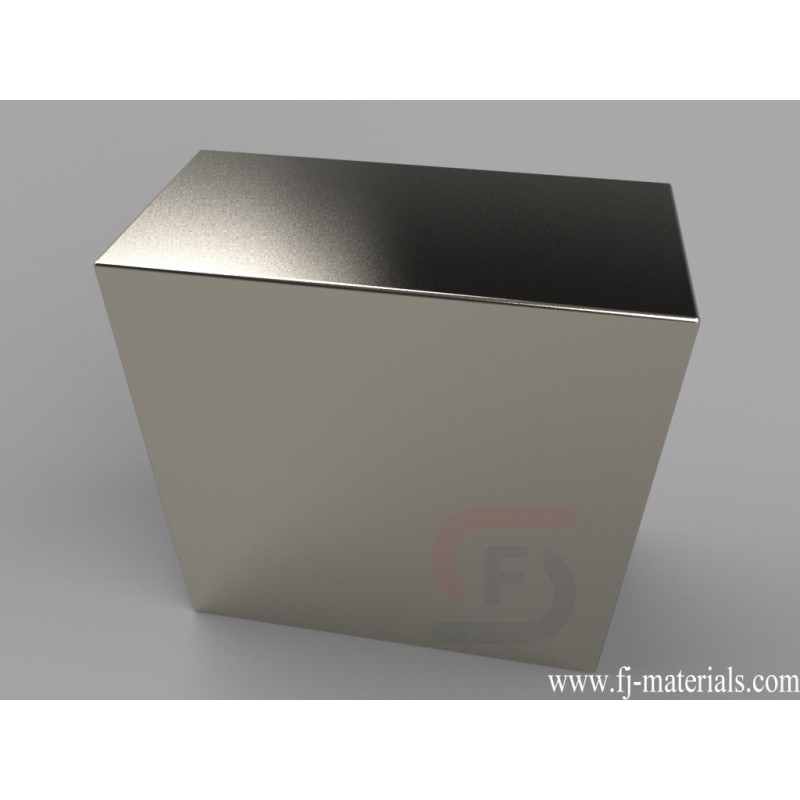

2 x 1 x 2 inch thick Block Magnets | BY0X0Y0
BY0X0Y0 Neodymium Magnets, 2 inch x 1 inch x 2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" x 1" x 2" thick, Thru Thickness magnetized. Pull force is approximately 285.84 lbs.
BY0X0Y0 Neodymium Magnet's dimesion is 2" x 1" x 2" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
BY0X0Y0 Neodymium Magnets, 2 inch x 1 inch x 2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" x 1" x 2" thick, Thru Thickness magnetized. Pull force is approximately 285.84 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BY0X0Y0
Data sheet
- Item Number
- BY0X0Y0
- Material
- NdFeB
- Grade
- N42
- Size
- 2" x 1" x 2" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 491.6119 g
- Pull Force
- 285.84 lbs
- Thickness
- G. 25.4-50.8mm
- Length
- G. 25.4-50.8mm
- Width
- F. 19.05-25.4mm
BY0X0Y0 Neodymium Magnets, 2 inch x 1 inch x 2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" x 1" x 2" thick, Thru Thickness magnetized. Pull force is approximately 285.84 lbs.
