2 x 2 x 3/16 inch thick Block Magnets | BY0Y03

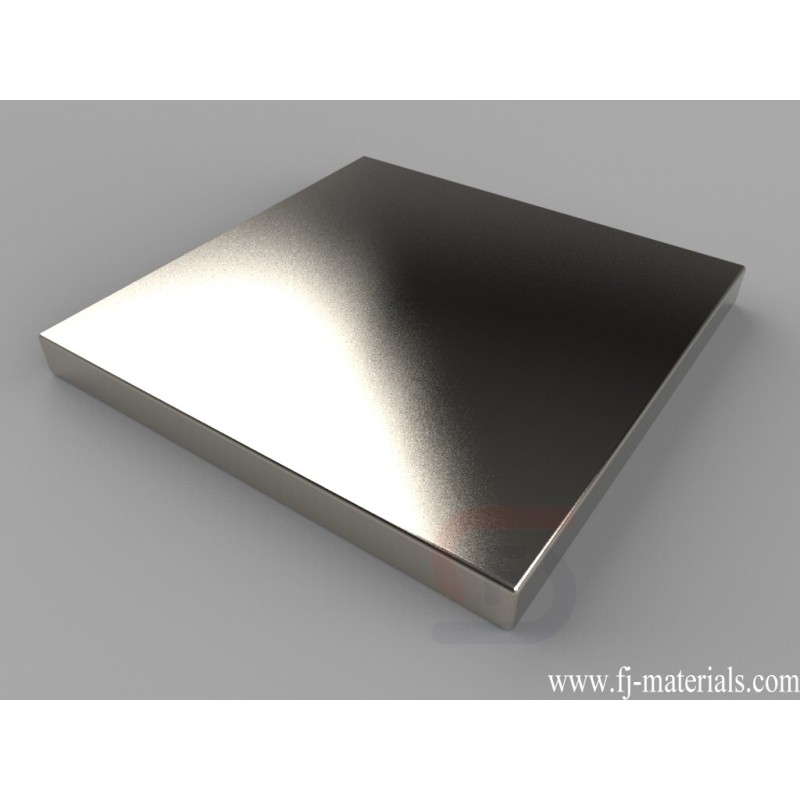

BY0Y03 Neodymium Magnets, 2 inch x 2 inch x 3/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" x 2" x 3/16" thick, Thru Thickness magnetized. Pull force is approximately 37.9 lbs.
BY0Y03 Neodymium Magnet's dimesion is 2" x 2" x 3/16" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
BY0Y03 Neodymium Magnets, 2 inch x 2 inch x 3/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" x 2" x 3/16" thick, Thru Thickness magnetized. Pull force is approximately 37.9 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BY0Y03
Data sheet
- Item Number
- BY0Y03
- Material
- NdFeB
- Grade
- N42
- Size
- 2" x 2" x 3/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 92.1772 g
- Pull Force
- 37.9 lbs
- Thickness
- B. 3.18-6.35mm
- Length
- G. 25.4-50.8mm
- Width
- G. 25.4-50.8mm
BY0Y03 Neodymium Magnets, 2 inch x 2 inch x 3/16 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" x 2" x 3/16" thick, Thru Thickness magnetized. Pull force is approximately 37.9 lbs.
