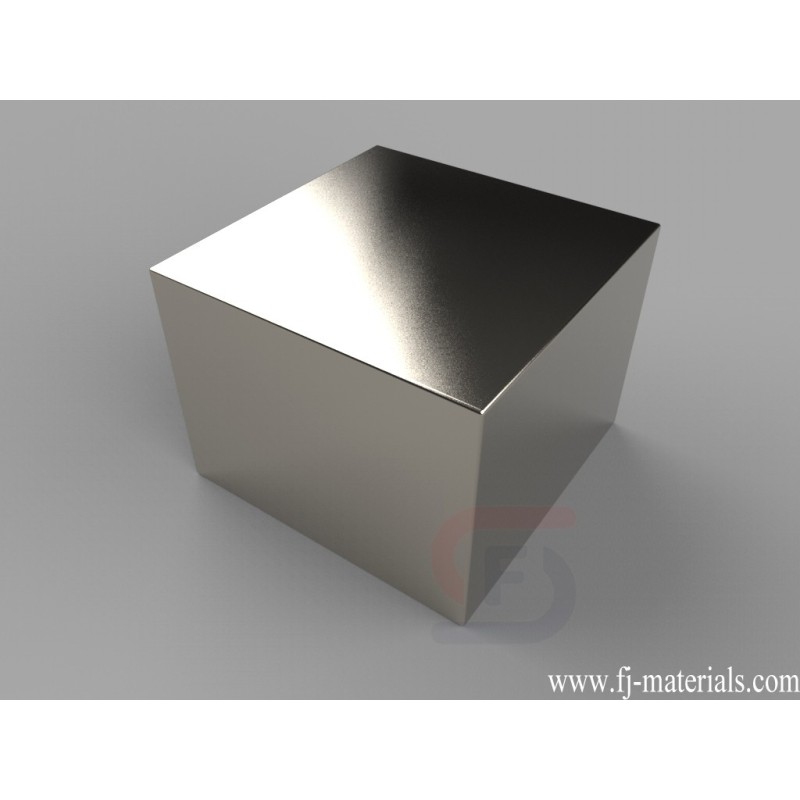

2 x 2 x 1 1/2 inch thick Block Magnets | BY0Y0X8
BY0Y0X8 Neodymium Magnets, 2 inch x 2 inch x 1 1/2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" x 2" x 1 1/2" thick, Thru Thickness magnetized. Pull force is approximately 303.18 lbs.
BY0Y0X8 Neodymium Magnet's dimesion is 2" x 2" x 1 1/2" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
BY0Y0X8 Neodymium Magnets, 2 inch x 2 inch x 1 1/2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" x 2" x 1 1/2" thick, Thru Thickness magnetized. Pull force is approximately 303.18 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BY0Y0X8
Data sheet
- Item Number
- BY0Y0X8
- Material
- NdFeB
- Grade
- N42
- Size
- 2" x 2" x 1 1/2" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 737.4179 g
- Pull Force
- 303.18 lbs
- Thickness
- G. 25.4-50.8mm
- Length
- G. 25.4-50.8mm
- Width
- G. 25.4-50.8mm
BY0Y0X8 Neodymium Magnets, 2 inch x 2 inch x 1 1/2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2" x 2" x 1 1/2" thick, Thru Thickness magnetized. Pull force is approximately 303.18 lbs.
