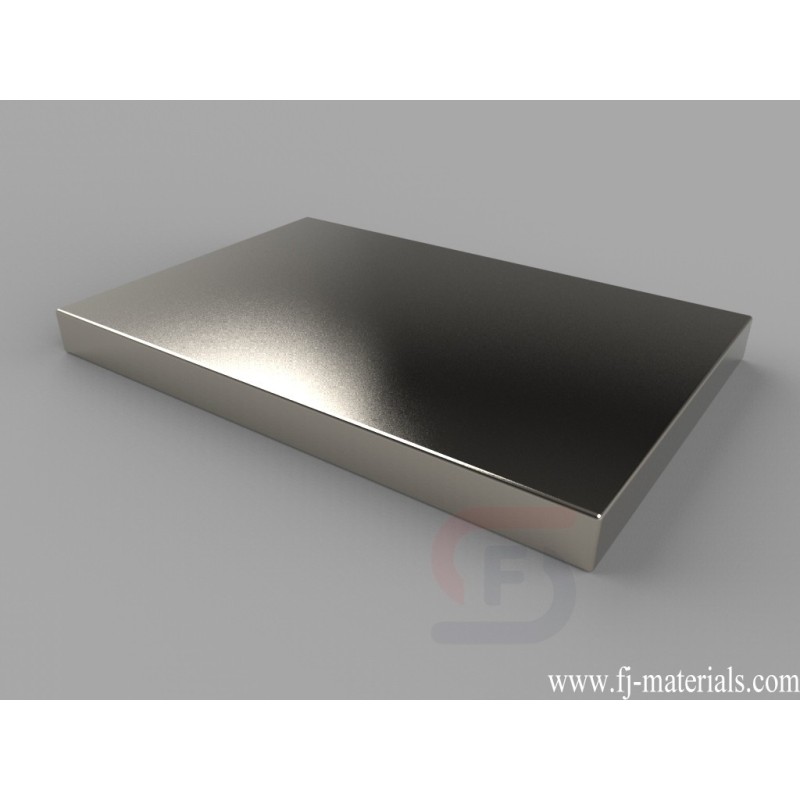

3 x 2 x 1/4 inch thick Block Magnets | BZ0Y04
BZ0Y04 Neodymium Magnets, 3 inch x 2 inch x 1/4 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3" x 2" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 61.89 lbs.
BZ0Y04 Neodymium Magnet's dimesion is 3" x 2" x 1/4" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
BZ0Y04 Neodymium Magnets, 3 inch x 2 inch x 1/4 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3" x 2" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 61.89 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BZ0Y04
Data sheet
- Item Number
- BZ0Y04
- Material
- NdFeB
- Grade
- N42
- Size
- 3" x 2" x 1/4" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 184.3545 g
- Pull Force
- 61.89 lbs
- Thickness
- B. 3.18-6.35mm
- Length
- H. 50.8-254mm
- Width
- G. 25.4-50.8mm
BZ0Y04 Neodymium Magnets, 3 inch x 2 inch x 1/4 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3" x 2" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 61.89 lbs.
