4 x 1/2 x 1/2 inch thick Block Magnets | BZX088

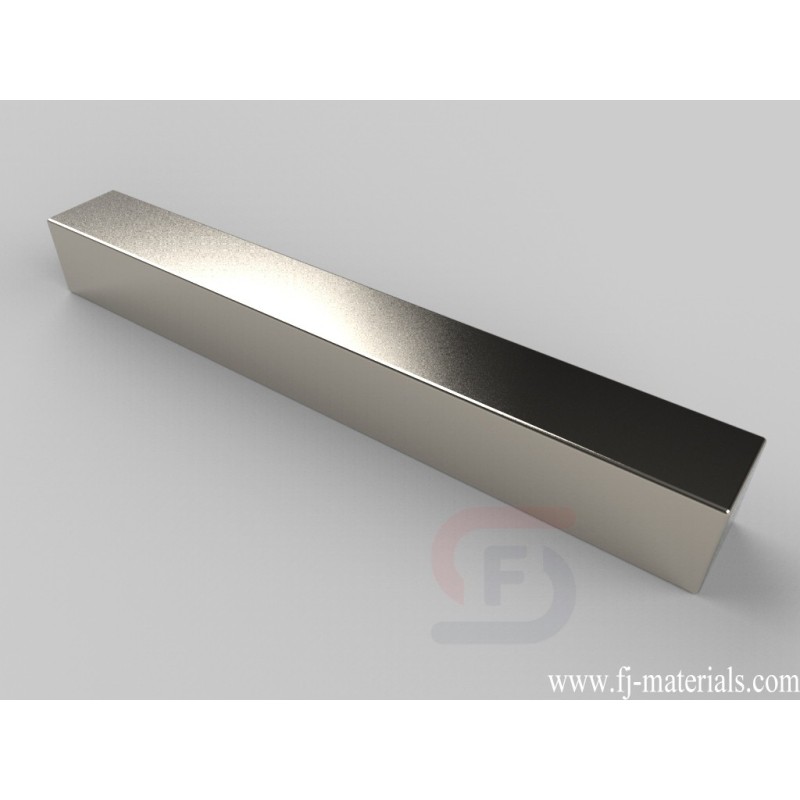

BZX088 Neodymium Magnets, 4 inch x 1/2 inch x 1/2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 4" x 1/2" x 1/2" thick, Thru Thickness magnetized. Pull force is approximately 71.46 lbs.
BZX088 Neodymium Magnet's dimesion is 4" x 1/2" x 1/2" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
BZX088 Neodymium Magnets, 4 inch x 1/2 inch x 1/2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 4" x 1/2" x 1/2" thick, Thru Thickness magnetized. Pull force is approximately 71.46 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BZX088
Data sheet
- Item Number
- BZX088
- Material
- NdFeB
- Grade
- N42
- Size
- 4" x 1/2" x 1/2" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 122.903 g
- Pull Force
- 71.46 lbs
- Thickness
- D. 9.53-12.7mm
- Length
- H. 50.8-254mm
- Width
- D. 9.53-12.7mm
BZX088 Neodymium Magnets, 4 inch x 1/2 inch x 1/2 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 4" x 1/2" x 1/2" thick, Thru Thickness magnetized. Pull force is approximately 71.46 lbs.
