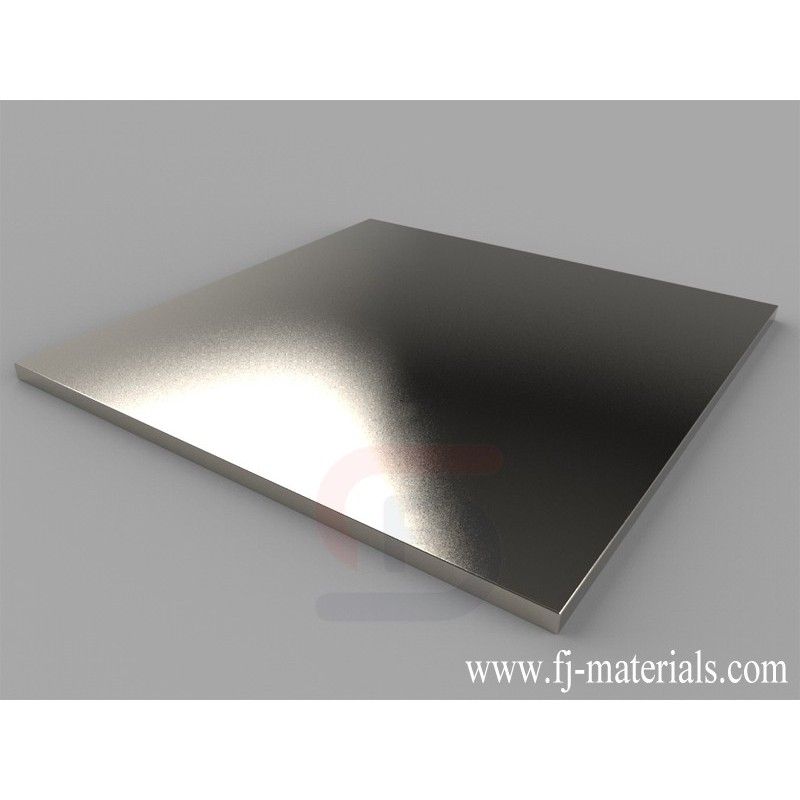

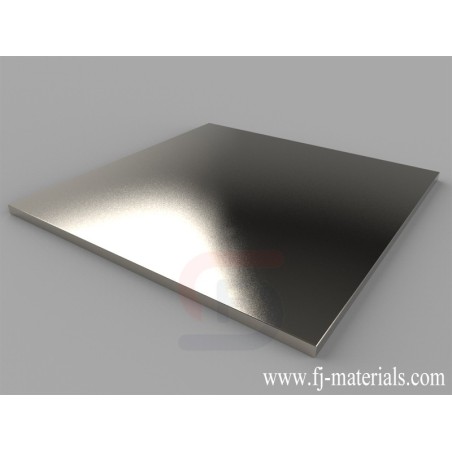

4 x 4 x 1/8 inch thick Block Magnets | BZX0ZX02
BZX0ZX02 Neodymium Magnets, 4 inch x 4 inch x 1/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 4" x 4" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 50.53 lbs.
BZX0ZX02 Neodymium Magnet's dimesion is 4" x 4" x 1/8" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
BZX0ZX02 Neodymium Magnets, 4 inch x 4 inch x 1/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 4" x 4" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 50.53 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BZX0ZX02
Data sheet
- Item Number
- BZX0ZX02
- Material
- NdFeB
- Grade
- N42
- Size
- 4" x 4" x 1/8" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 245.806 g
- Pull Force
- 50.53 lbs
- Thickness
- A. 0.00-3.18mm
- Length
- H. 50.8-254mm
- Width
- H. 50.8-254mm
BZX0ZX02 Neodymium Magnets, 4 inch x 4 inch x 1/8 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 4" x 4" x 1/8" thick, Thru Thickness magnetized. Pull force is approximately 50.53 lbs.
