100x10x3mm Block Magnets | B100x10x3mm

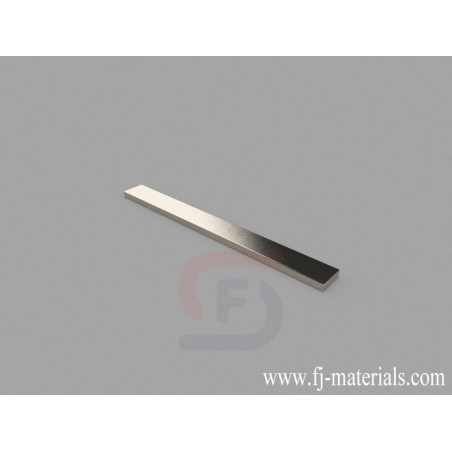

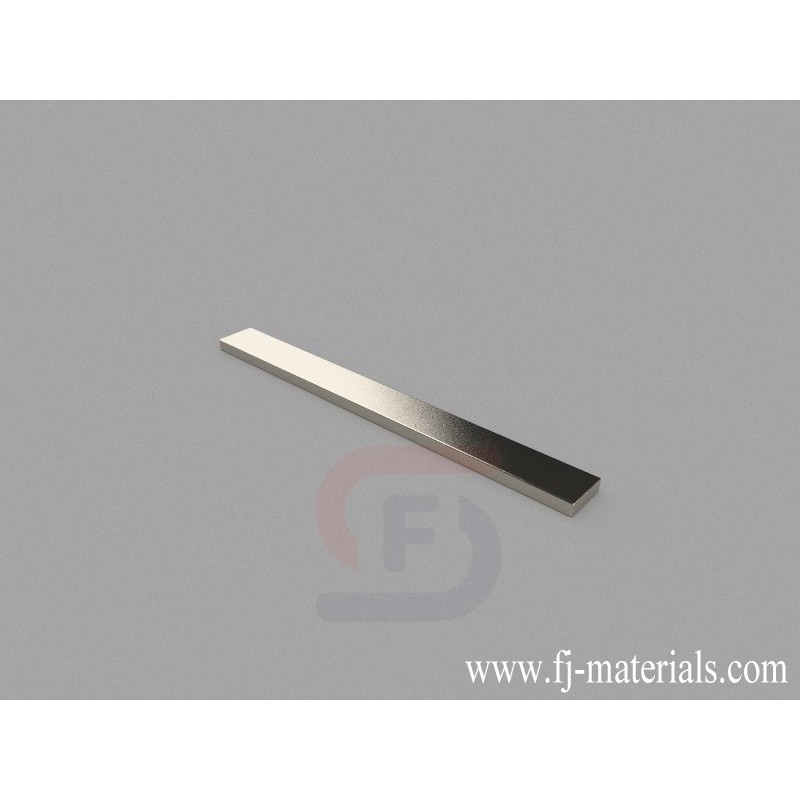

B100x10x3mm Neodymium Magnet, 100 x 10 x 3mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 100x10x3mm, Thru Thickness magnetized. Pull force is approximately 14.86 lbs (6.75kg).

B100x10x3mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 100x10x3mm, Ni-Cu-Ni (Nickel) coating. Pull force: 14.86 lbs (6.75kg). Magnetization direction: Through Thickness

B100x10x3mm Neodymium Magnet, 100 x 10 x 3mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 100x10x3mm, Thru Thickness magnetized. Pull force is approximately 14.86 lbs (6.75kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

B100x10x3mm

Data sheet

Item Number
B100x10x3mm
Material
NdFeB
Grade
N42
Size
100x10x3mm
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
22.500g
Pull Force
14.86 lbs (6.75kg)
Thickness
A. 0.00-3.18mm
Length
H. 50.8-254mm
Width
D. 9.53-12.7mm
