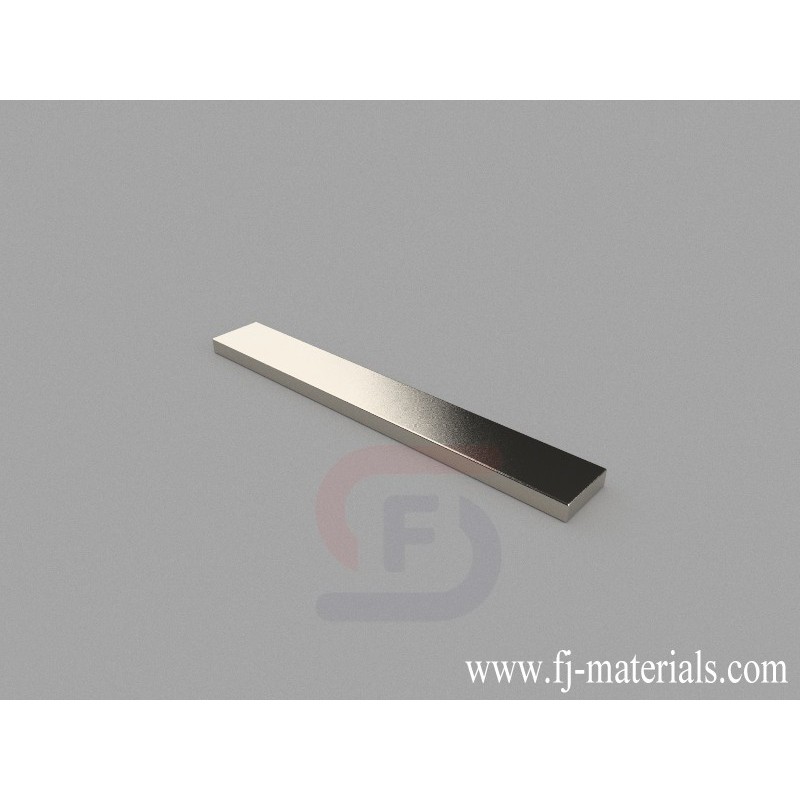

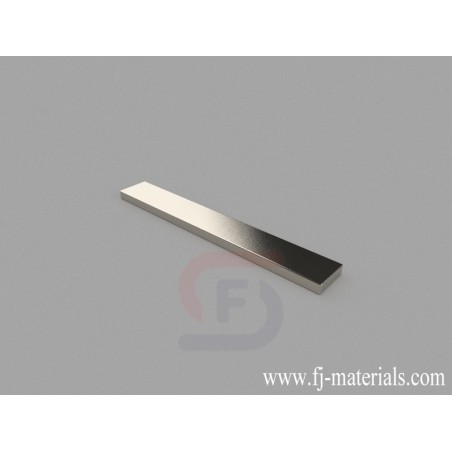

100x14x4mm Block Magnets | B100x14x4mm

B100x14x4mm Neodymium Magnet, 100 x 14 x 4mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 100x14x4mm, Thru Thickness magnetized. Pull force is approximately 23.44 lbs (10.66kg).

B100x14x4mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 100x14x4mm, Ni-Cu-Ni (Nickel) coating. Pull force: 23.44 lbs (10.66kg). Magnetization direction: Through Thickness

B100x14x4mm Neodymium Magnet, 100 x 14 x 4mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 100x14x4mm, Thru Thickness magnetized. Pull force is approximately 23.44 lbs (10.66kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

B100x14x4mm

Data sheet

Item Number
B100x14x4mm
Material
NdFeB
Grade
N42
Size
100x14x4mm
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
42.000g
Pull Force
23.44 lbs (10.66kg)
Thickness
B. 3.18-6.35mm
Length
H. 50.8-254mm
Width
E. 12.7-19.05mm
