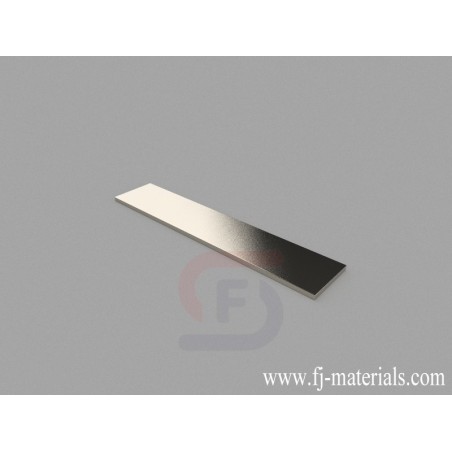

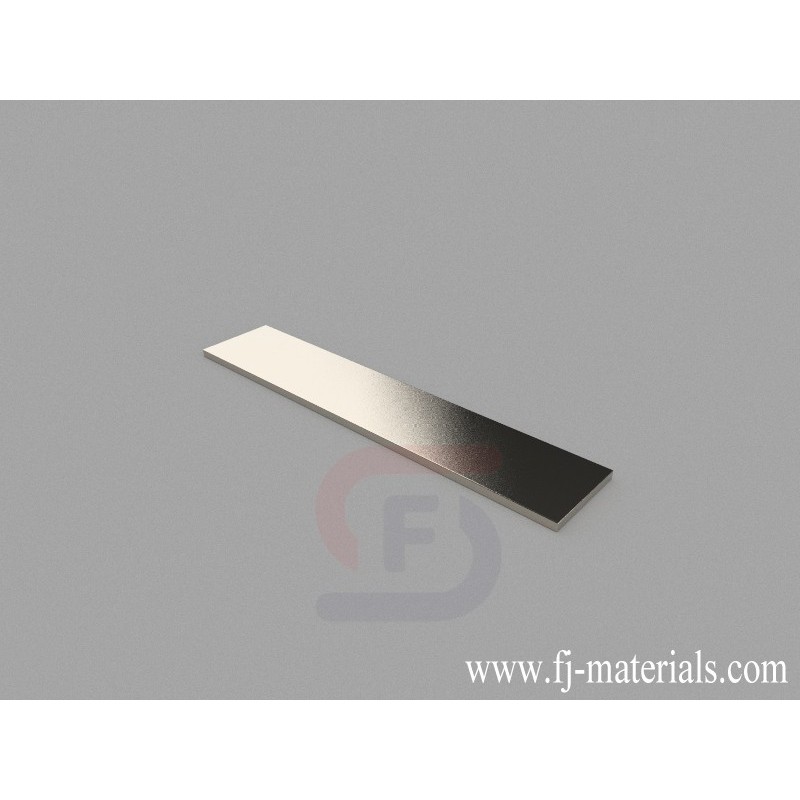

100x20x2mm Block Magnets | B100x20x2mm

B100x20x2mm Neodymium Magnet, 100 x 20 x 2mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 100x20x2mm, Thru Thickness magnetized. Pull force is approximately 14.01 lbs (6.37kg).

B100x20x2mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 100x20x2mm, Ni-Cu-Ni (Nickel) coating. Pull force: 14.01 lbs (6.37kg). Magnetization direction: Through Thickness

B100x20x2mm Neodymium Magnet, 100 x 20 x 2mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 100x20x2mm, Thru Thickness magnetized. Pull force is approximately 14.01 lbs (6.37kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

B100x20x2mm

Data sheet

Item Number
B100x20x2mm
Material
NdFeB
Grade
N42
Size
100x20x2mm
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
30.000g
Pull Force
14.01 lbs (6.37kg)
Thickness
A. 0.00-3.18mm
Length
H. 50.8-254mm
Width
F. 19.05-25.4mm
