100x35x22mm Block Magnets | B100x35x22mm

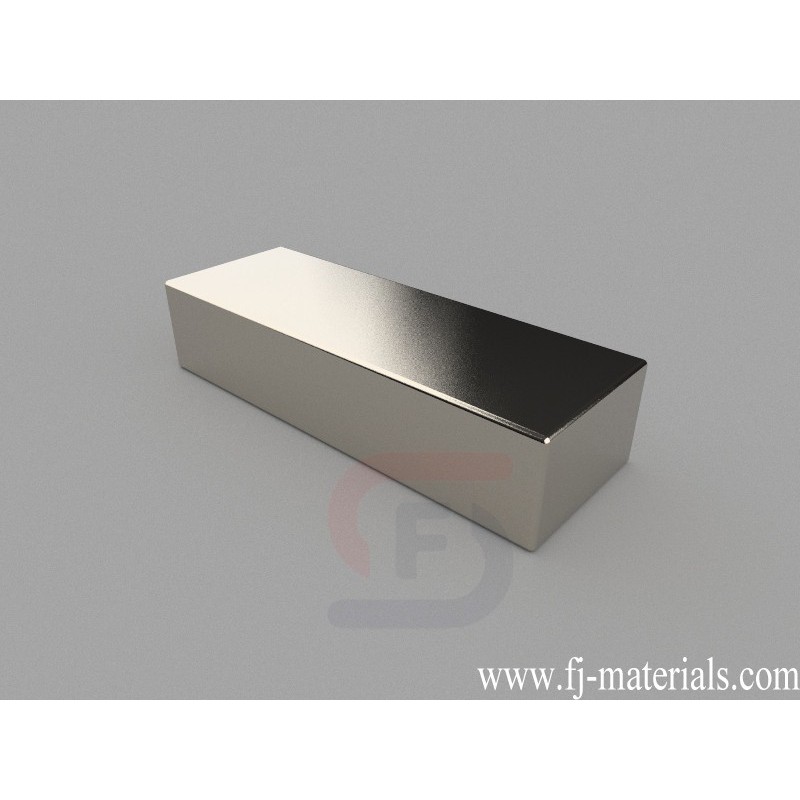

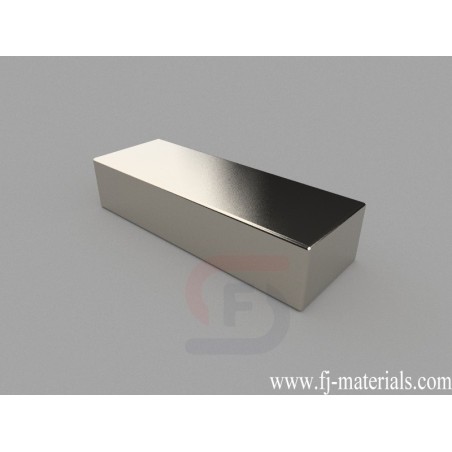

B100x35x22mm Neodymium Magnet, 100 x 35 x 22mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 100x35x22mm, Thru Thickness magnetized. Pull force is approximately 203.88 lbs (92.67kg).

B100x35x22mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 100x35x22mm, Ni-Cu-Ni (Nickel) coating. Pull force: 203.88 lbs (92.67kg). Magnetization direction: Through Thickness

B100x35x22mm Neodymium Magnet, 100 x 35 x 22mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 100x35x22mm, Thru Thickness magnetized. Pull force is approximately 203.88 lbs (92.67kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

B100x35x22mm

Data sheet

Item Number
B100x35x22mm
Material
NdFeB
Grade
N42
Size
100x35x22mm
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
577.500g
Pull Force
203.88 lbs (92.67kg)
Thickness
F. 19.05-25.4mm
Length
H. 50.8-254mm
Width
G. 25.4-50.8mm
