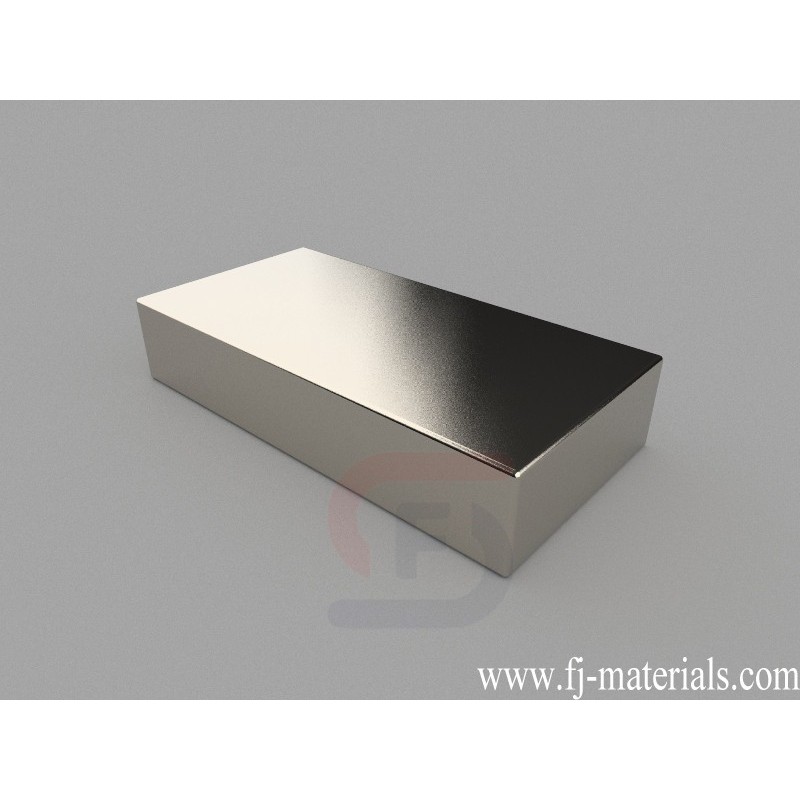

100x50x20mm Block Magnets | B100x50x20mm
B100x50x20mm Neodymium Magnet, 100 x 50 x 20mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 100x50x20mm, Thru Thickness magnetized. Pull force is approximately 221.53 lbs (100.69kg).
B100x50x20mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 100x50x20mm, Ni-Cu-Ni (Nickel) coating. Pull force: 221.53 lbs (100.69kg). Magnetization direction: Through Thickness
B100x50x20mm Neodymium Magnet, 100 x 50 x 20mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 100x50x20mm, Thru Thickness magnetized. Pull force is approximately 221.53 lbs (100.69kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B100x50x20mm
Data sheet
- Item Number
- B100x50x20mm
- Material
- NdFeB
- Grade
- N42
- Size
- 100x50x20mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 750.000g
- Pull Force
- 221.53 lbs (100.69kg)
- Thickness
- F. 19.05-25.4mm
- Length
- H. 50.8-254mm
- Width
- G. 25.4-50.8mm
B100x50x20mm Neodymium Magnet, 100 x 50 x 20mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 100x50x20mm, Thru Thickness magnetized. Pull force is approximately 221.53 lbs (100.69kg).
