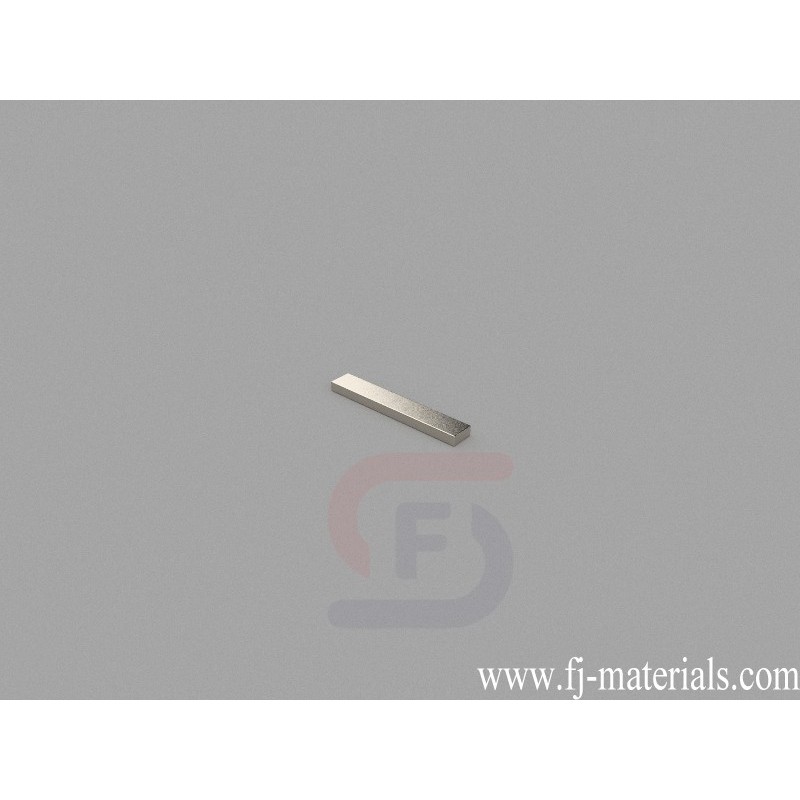

10x1.6x0.7mm Block Magnets | B10x1.6x0.7mm
B10x1.6x0.7mm Neodymium Magnet, 10 x 1.6 x 0.7mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 10x1.6x0.7mm, Thru Thickness magnetized. Pull force is approximately 0.44 lbs (0.20kg).
B10x1.6x0.7mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 10x1.6x0.7mm, Ni-Cu-Ni (Nickel) coating. Pull force: 0.44 lbs (0.20kg). Magnetization direction: Through Thickness
B10x1.6x0.7mm Neodymium Magnet, 10 x 1.6 x 0.7mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 10x1.6x0.7mm, Thru Thickness magnetized. Pull force is approximately 0.44 lbs (0.20kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B10x1.6x0.7mm
Data sheet
- Item Number
- B10x1.6x0.7mm
- Material
- NdFeB
- Grade
- N42
- Size
- 10x1.6x0.7mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.084g
- Pull Force
- 0.44 lbs (0.20kg)
- Thickness
- A. 0.00-3.18mm
- Length
- D. 9.53-12.7mm
- Width
- A. 0.00-3.18mm
B10x1.6x0.7mm Neodymium Magnet, 10 x 1.6 x 0.7mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 10x1.6x0.7mm, Thru Thickness magnetized. Pull force is approximately 0.44 lbs (0.20kg).
