10x10x10mm Block Magnets | B10x10x10mm

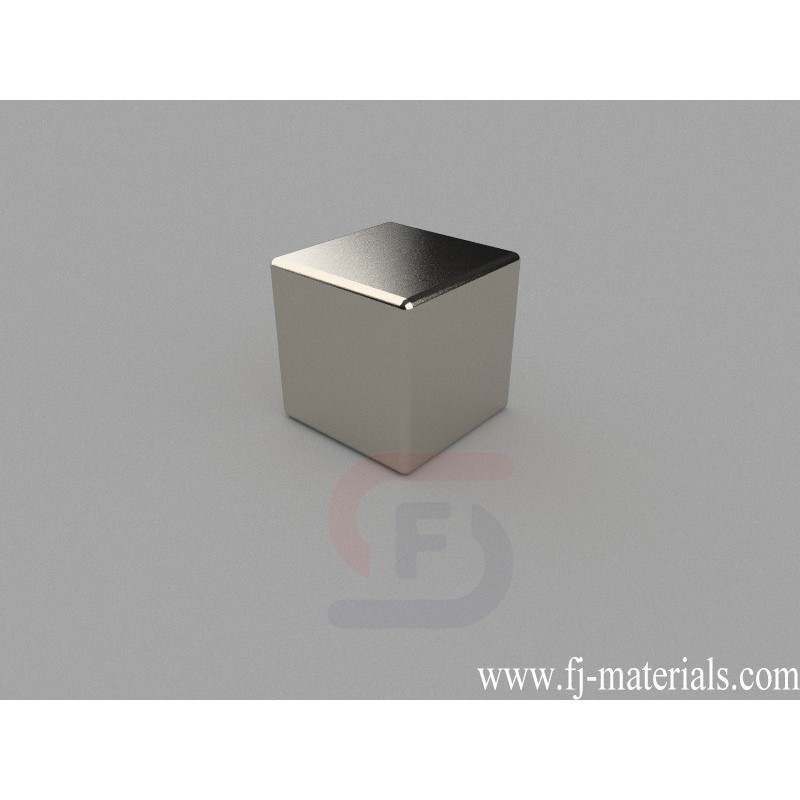

B10x10x10mm Neodymium Magnet, 10 x 10 x 10mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 10x10x10mm, Thru Thickness magnetized. Pull force is approximately 15.66 lbs (7.12kg).
B10x10x10mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 10x10x10mm, Ni-Cu-Ni (Nickel) coating. Pull force: 15.66 lbs (7.12kg). Magnetization direction: Through Thickness
B10x10x10mm Neodymium Magnet, 10 x 10 x 10mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 10x10x10mm, Thru Thickness magnetized. Pull force is approximately 15.66 lbs (7.12kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B10x10x10mm
Data sheet
- Item Number
- B10x10x10mm
- Material
- NdFeB
- Grade
- N42
- Size
- 10x10x10mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 7.500g
- Pull Force
- 15.66 lbs (7.12kg)
- Thickness
- D. 9.53-12.7mm
- Length
- D. 9.53-12.7mm
- Width
- D. 9.53-12.7mm
B10x10x10mm Neodymium Magnet, 10 x 10 x 10mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 10x10x10mm, Thru Thickness magnetized. Pull force is approximately 15.66 lbs (7.12kg).
