  • BC82CS-S

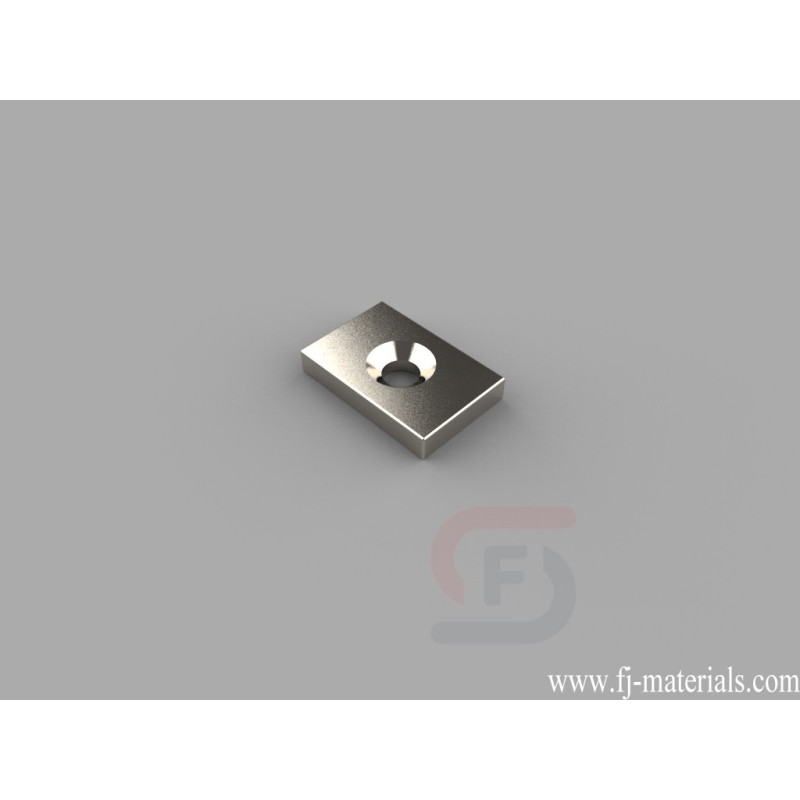

1 x 1/2 x 1/8 inch thick with countersunk hole for No. 6 screw Block Magnets | BC82CS-S

BC82CS-S Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" x 1/2" x 1/8" thick with countersunk hole for #6 screw, Thru Thickness magnetized. Pull force is approximately 7.36 lbs.

Yiwu Fenjiao E-commerce Firm supply BC82CS-S Neodymium Block Magnets with high quality at competitive price.

BC82CS-S Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1" x 1/2" x 1/8" thick with countersunk hole for #6 screw, Thru Thickness magnetized. Pull force is approximately 7.36 lbs.

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

BC82CS-S

Data sheet

Item Number
BC82CS-S
Material
NdFeB
Grade
N42
Size
1" x 1/2" x 1/8" thick with countersunk hole for No. 6 screw
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
0.184 oz. (5.23 g)
Pull Force
7.36 lbs
Thickness
A. 0.00-3.18mm
Length
E. 12.7-19.05mm
Width
D. 9.53-12.7mm

Inquiry

Please describe the product(s) which you would like to get more information/quotation about.
* These fields are required. Without such information, we are not able to process your inquiry. Our minimum order amount is USD300.
