10x2.8x1.9mm Block Magnets | B10x2.8x1.9mm

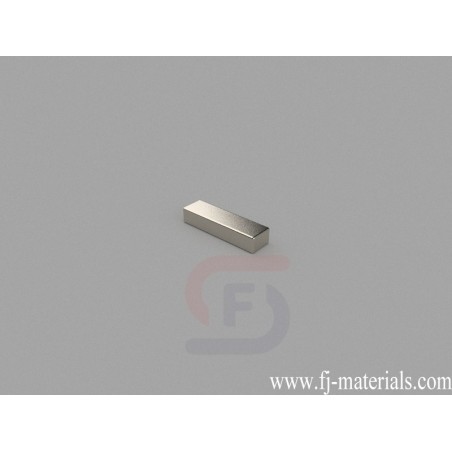

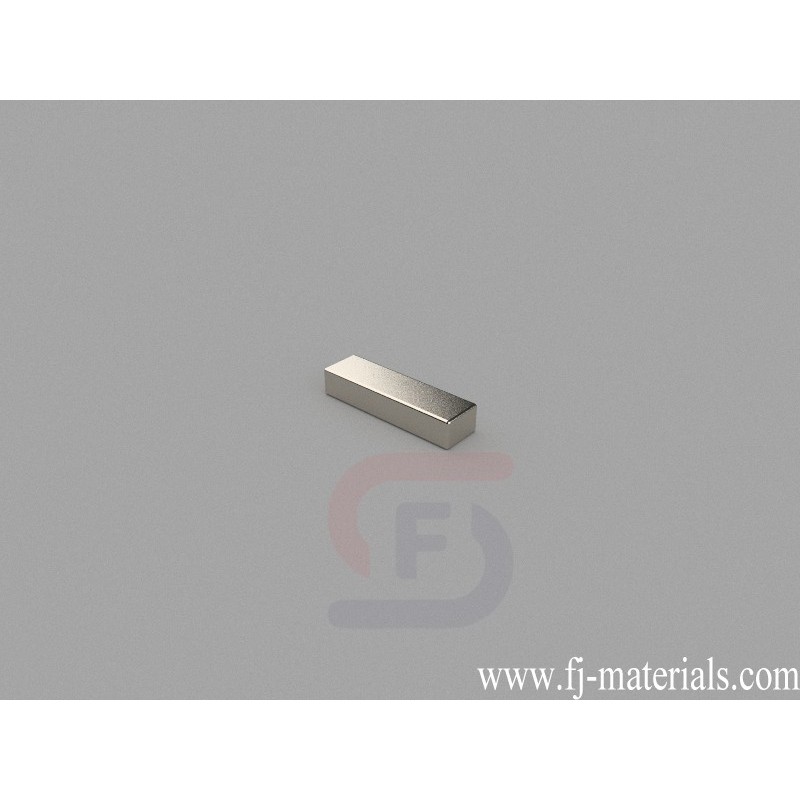

B10x2.8x1.9mm Neodymium Magnet, 10 x 2.8 x 1.9mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 10x2.8x1.9mm, Thru Thickness magnetized. Pull force is approximately 1.57 lbs (0.72kg).
B10x2.8x1.9mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 10x2.8x1.9mm, Ni-Cu-Ni (Nickel) coating. Pull force: 1.57 lbs (0.72kg). Magnetization direction: Through Thickness
B10x2.8x1.9mm Neodymium Magnet, 10 x 2.8 x 1.9mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 10x2.8x1.9mm, Thru Thickness magnetized. Pull force is approximately 1.57 lbs (0.72kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B10x2.8x1.9mm
Data sheet
- Item Number
- B10x2.8x1.9mm
- Material
- NdFeB
- Grade
- N42
- Size
- 10x2.8x1.9mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.399g
- Pull Force
- 1.57 lbs (0.72kg)
- Thickness
- A. 0.00-3.18mm
- Length
- D. 9.53-12.7mm
- Width
- A. 0.00-3.18mm
B10x2.8x1.9mm Neodymium Magnet, 10 x 2.8 x 1.9mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 10x2.8x1.9mm, Thru Thickness magnetized. Pull force is approximately 1.57 lbs (0.72kg).
