3/4 x 1/2 x 1/4 inch thick Block Magnets | BC84

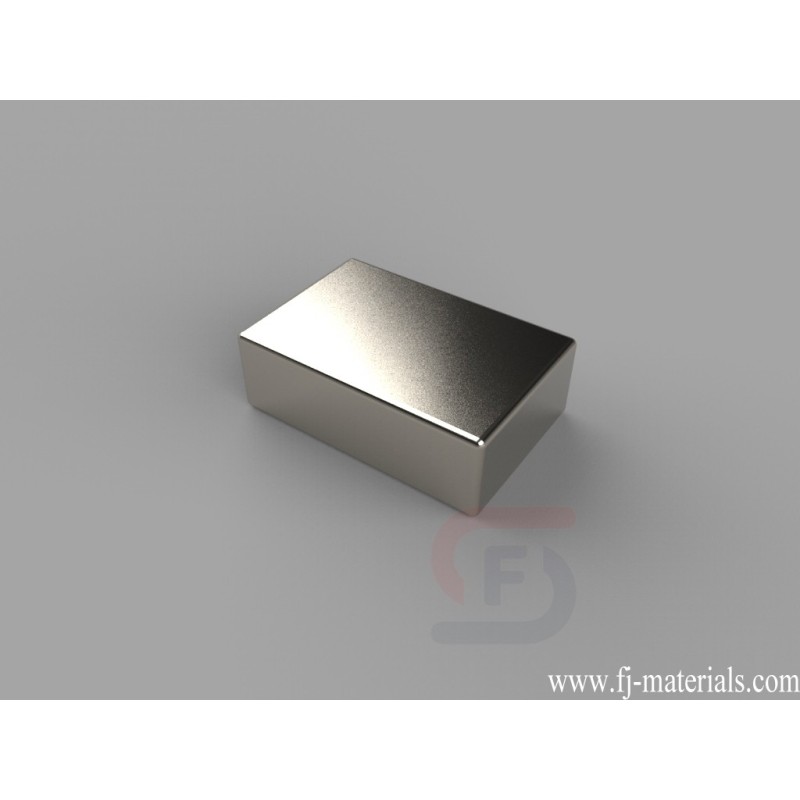

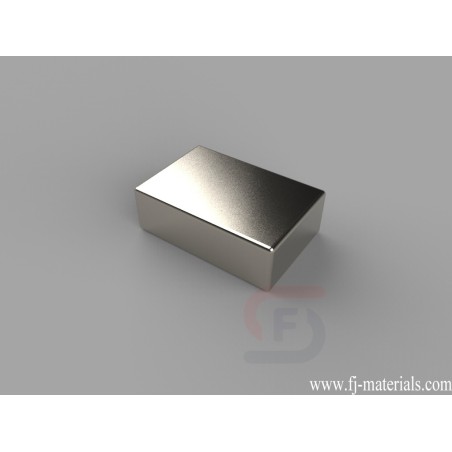

BC84 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" x 1/2" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 17.16 lbs.
Yiwu Fenjiao E-commerce Firm supply BC84 Neodymium Block Magnets with high quality at competitive price.
BC84 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" x 1/2" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 17.16 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BC84
Data sheet
- Item Number
- BC84
- Material
- NdFeB
- Grade
- N42
- Size
- 3/4" x 1/2" x 1/4" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.407 oz. (11.52 g)
- Pull Force
- 17.16 lbs
- Thickness
- B. 3.18-6.35mm
- Length
- E. 12.7-19.05mm
- Width
- D. 9.53-12.7mm
BC84 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" x 1/2" x 1/4" thick, Thru Thickness magnetized. Pull force is approximately 17.16 lbs.
