10x7x2mm Block Magnets | B10x7x2mm

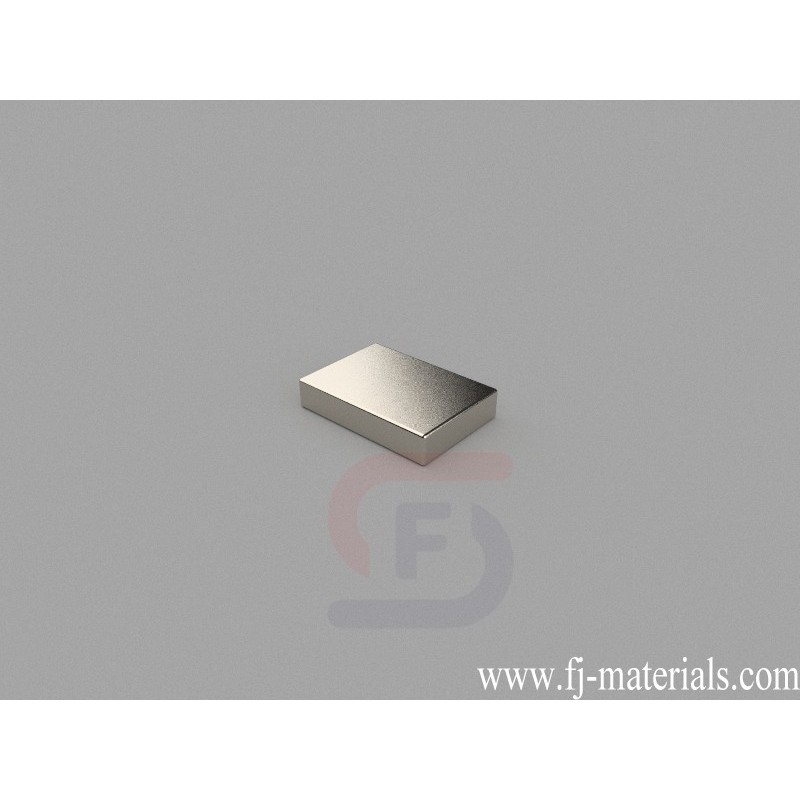

B10x7x2mm Neodymium Magnet, 10 x 7 x 2mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 10x7x2mm, Thru Thickness magnetized. Pull force is approximately 2.62 lbs (1.19kg).
B10x7x2mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 10x7x2mm, Ni-Cu-Ni (Nickel) coating. Pull force: 2.62 lbs (1.19kg). Magnetization direction: Through Thickness
B10x7x2mm Neodymium Magnet, 10 x 7 x 2mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 10x7x2mm, Thru Thickness magnetized. Pull force is approximately 2.62 lbs (1.19kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B10x7x2mm
Data sheet
- Item Number
- B10x7x2mm
- Material
- NdFeB
- Grade
- N42
- Size
- 10x7x2mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 1.050g
- Pull Force
- 2.62 lbs (1.19kg)
- Thickness
- A. 0.00-3.18mm
- Length
- D. 9.53-12.7mm
- Width
- C. 6.35-9.53mm
B10x7x2mm Neodymium Magnet, 10 x 7 x 2mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 10x7x2mm, Thru Thickness magnetized. Pull force is approximately 2.62 lbs (1.19kg).
