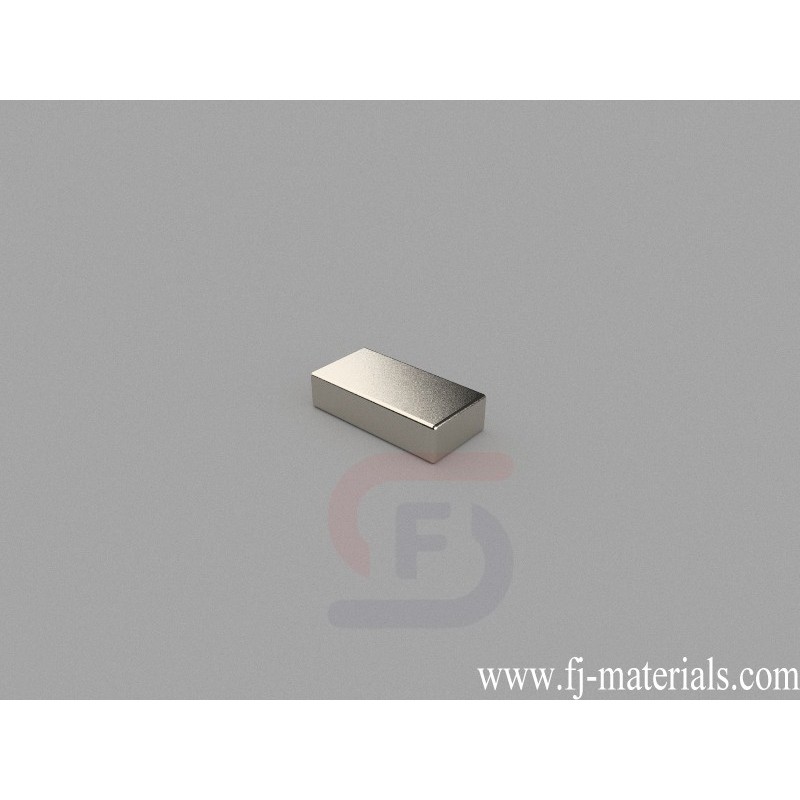

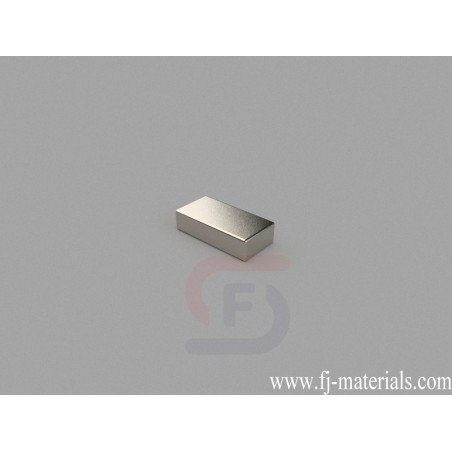

12x6x3mm Block Magnets | B12x6x3mm
B12x6x3mm Neodymium Magnet, 12 x 6 x 3mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 12x6x3mm, Thru Thickness magnetized. Pull force is approximately 3.99 lbs (1.81kg).
B12x6x3mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 12x6x3mm, Ni-Cu-Ni (Nickel) coating. Pull force: 3.99 lbs (1.81kg). Magnetization direction: Through Thickness
B12x6x3mm Neodymium Magnet, 12 x 6 x 3mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 12x6x3mm, Thru Thickness magnetized. Pull force is approximately 3.99 lbs (1.81kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B12x6x3mm
Data sheet
- Item Number
- B12x6x3mm
- Material
- NdFeB
- Grade
- N42
- Size
- 12x6x3mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 1.620g
- Pull Force
- 3.99 lbs (1.81kg)
- Thickness
- A. 0.00-3.18mm
- Length
- D. 9.53-12.7mm
- Width
- B. 3.18-6.35mm
B12x6x3mm Neodymium Magnet, 12 x 6 x 3mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 12x6x3mm, Thru Thickness magnetized. Pull force is approximately 3.99 lbs (1.81kg).
