15x10x1mm Block Magnets | B15x10x1mm

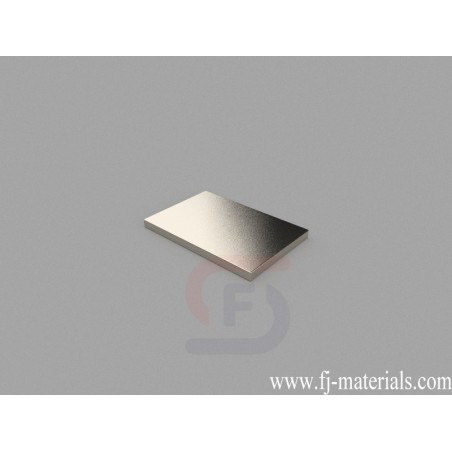

B15x10x1mm Neodymium Magnet, 15 x 10 x 1mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 15x10x1mm, Thru Thickness magnetized. Pull force is approximately 1.92 lbs (0.87kg).
B15x10x1mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 15x10x1mm, Ni-Cu-Ni (Nickel) coating. Pull force: 1.92 lbs (0.87kg). Magnetization direction: Through Thickness
B15x10x1mm Neodymium Magnet, 15 x 10 x 1mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 15x10x1mm, Thru Thickness magnetized. Pull force is approximately 1.92 lbs (0.87kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B15x10x1mm
Data sheet
- Item Number
- B15x10x1mm
- Material
- NdFeB
- Grade
- N42
- Size
- 15x10x1mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 1.125g
- Pull Force
- 1.92 lbs (0.87kg)
- Thickness
- A. 0.00-3.18mm
- Length
- E. 12.7-19.05mm
- Width
- D. 9.53-12.7mm
B15x10x1mm Neodymium Magnet, 15 x 10 x 1mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 15x10x1mm, Thru Thickness magnetized. Pull force is approximately 1.92 lbs (0.87kg).
