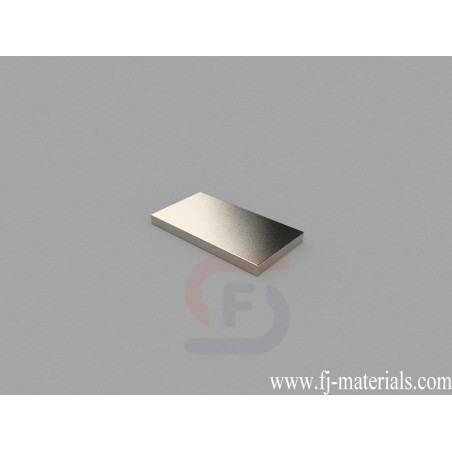

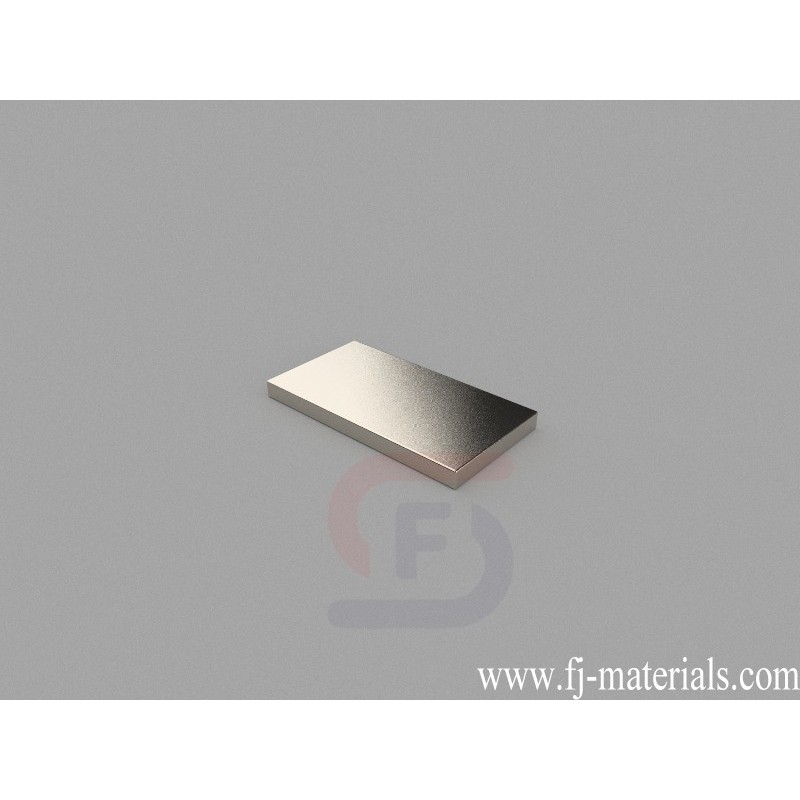

15x8x1.2mm Block Magnets | B15x8x1.2mm
B15x8x1.2mm Neodymium Magnet, 15 x 8 x 1.2mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 15x8x1.2mm, Thru Thickness magnetized. Pull force is approximately 2.06 lbs (0.94kg).
B15x8x1.2mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 15x8x1.2mm, Ni-Cu-Ni (Nickel) coating. Pull force: 2.06 lbs (0.94kg). Magnetization direction: Through Thickness
B15x8x1.2mm Neodymium Magnet, 15 x 8 x 1.2mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 15x8x1.2mm, Thru Thickness magnetized. Pull force is approximately 2.06 lbs (0.94kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B15x8x1.2mm
Data sheet
- Item Number
- B15x8x1.2mm
- Material
- NdFeB
- Grade
- N42
- Size
- 15x8x1.2mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 1.080g
- Pull Force
- 2.06 lbs (0.94kg)
- Thickness
- A. 0.00-3.18mm
- Length
- E. 12.7-19.05mm
- Width
- C. 6.35-9.53mm
B15x8x1.2mm Neodymium Magnet, 15 x 8 x 1.2mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 15x8x1.2mm, Thru Thickness magnetized. Pull force is approximately 2.06 lbs (0.94kg).
