B20x12x5mm
search
  • B20x12x5mm

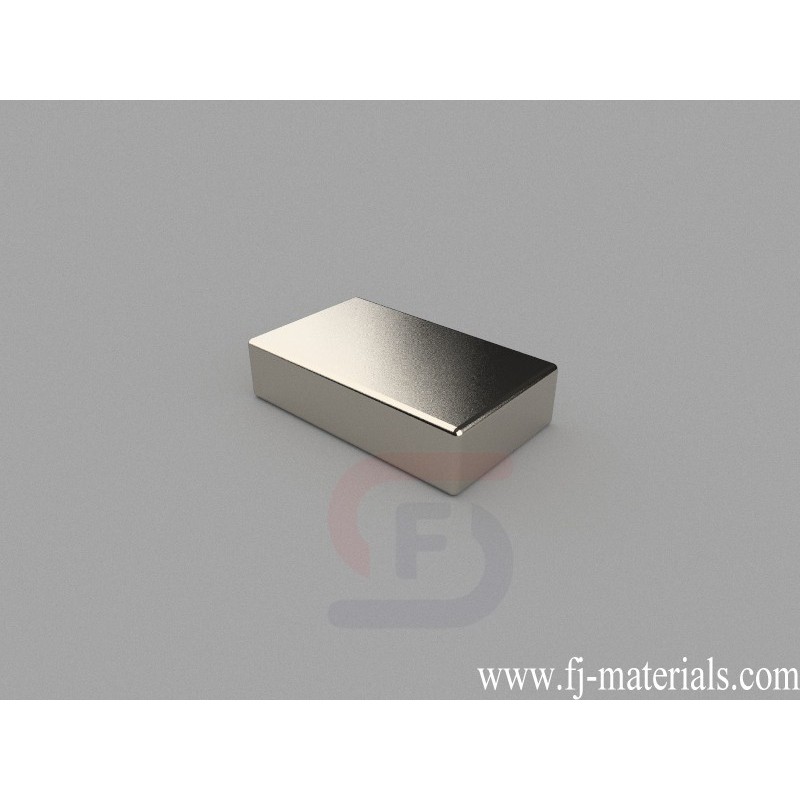

20x12x5mm Block Magnets | B20x12x5mm

B20x12x5mm Neodymium Magnet, 20 x 12 x 5mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 20x12x5mm, Thru Thickness magnetized. Pull force is approximately 12.13 lbs (5.52kg).

B20x12x5mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 20x12x5mm, Ni-Cu-Ni (Nickel) coating. Pull force: 12.13 lbs (5.52kg). Magnetization direction: Through Thickness

B20x12x5mm Neodymium Magnet, 20 x 12 x 5mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 20x12x5mm, Thru Thickness magnetized. Pull force is approximately 12.13 lbs (5.52kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

B20x12x5mm

Data sheet

Item Number
B20x12x5mm
Material
NdFeB
Grade
N42
Size
20x12x5mm
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
9.000g
Pull Force
12.13 lbs (5.52kg)
Thickness
B. 3.18-6.35mm
Length
F. 19.05-25.4mm
Width
D. 9.53-12.7mm

Inquiry

Please describe the product(s) which you would like to get more information/quotation about.
* These fields are required. Without such information, we are not able to process your inquiry. Our minimum order amount is USD300.
