25.4x25.4x6.35mm Block Magnets | B25.4x25.4x6.35mm

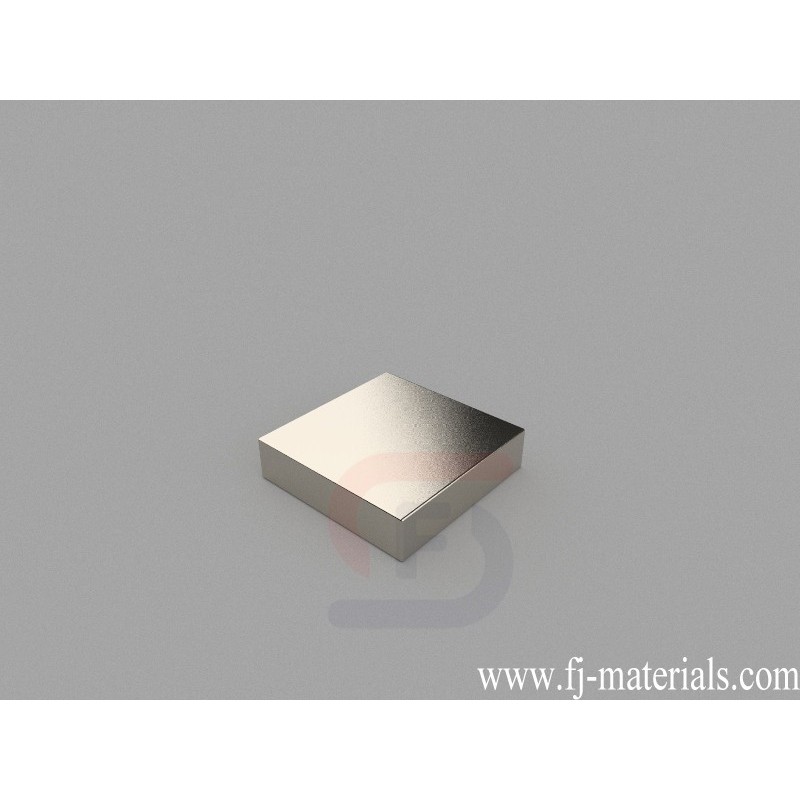

B25.4x25.4x6.35mm Neodymium Magnet, 25.4 x 25.4 x 6.35mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 25.4x25.4x6.35mm, Thru Thickness magnetized. Pull force is approximately 25.26 lbs (11.48kg).
B25.4x25.4x6.35mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 25.4x25.4x6.35mm, Ni-Cu-Ni (Nickel) coating. Pull force: 25.26 lbs (11.48kg). Magnetization direction: Through Thickness
B25.4x25.4x6.35mm Neodymium Magnet, 25.4 x 25.4 x 6.35mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 25.4x25.4x6.35mm, Thru Thickness magnetized. Pull force is approximately 25.26 lbs (11.48kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B25.4x25.4x6.35mm
Data sheet
- Item Number
- B25.4x25.4x6.35mm
- Material
- NdFeB
- Grade
- N42
- Size
- 25.4x25.4x6.35mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 30.726g
- Pull Force
- 25.26 lbs (11.48kg)
- Thickness
- B. 3.18-6.35mm
- Length
- F. 19.05-25.4mm
- Width
- F. 19.05-25.4mm
B25.4x25.4x6.35mm Neodymium Magnet, 25.4 x 25.4 x 6.35mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 25.4x25.4x6.35mm, Thru Thickness magnetized. Pull force is approximately 25.26 lbs (11.48kg).
