25x20x8mm Block Magnets | B25x20x8mm

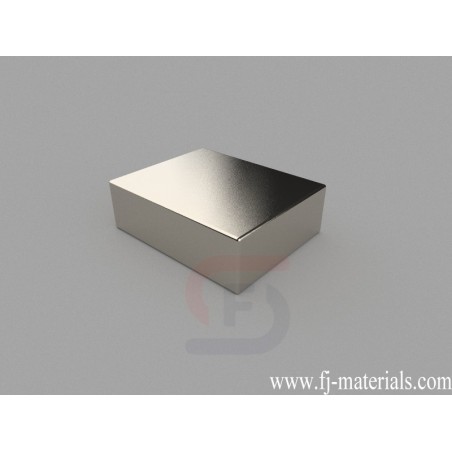

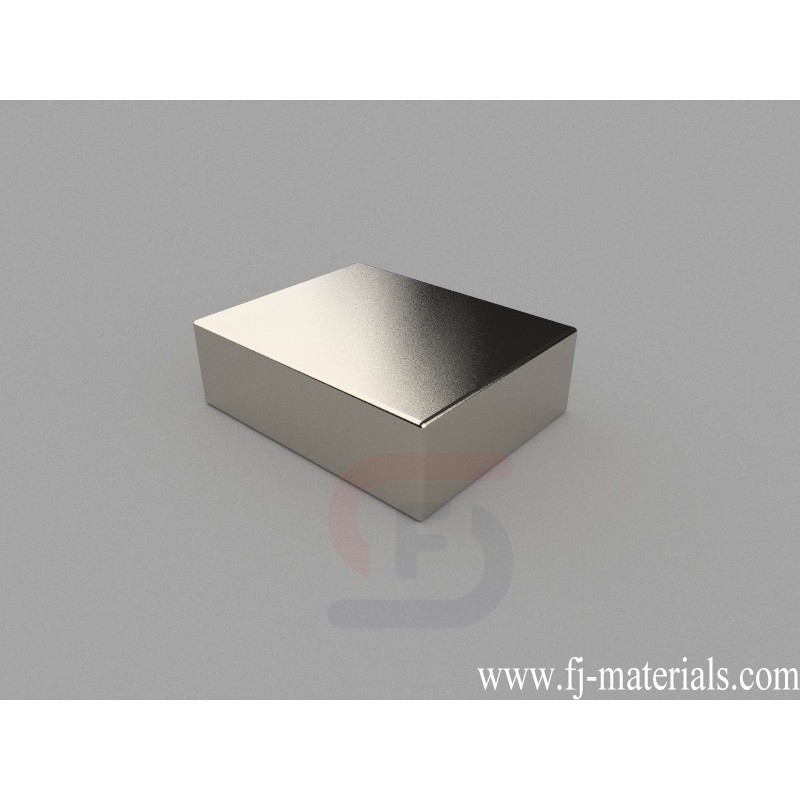

B25x20x8mm Neodymium Magnet, 25 x 20 x 8mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 25x20x8mm, Thru Thickness magnetized. Pull force is approximately 28.02 lbs (12.74kg).

B25x20x8mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 25x20x8mm, Ni-Cu-Ni (Nickel) coating. Pull force: 28.02 lbs (12.74kg). Magnetization direction: Through Thickness

B25x20x8mm Neodymium Magnet, 25 x 20 x 8mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 25x20x8mm, Thru Thickness magnetized. Pull force is approximately 28.02 lbs (12.74kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

B25x20x8mm

Data sheet

Item Number
B25x20x8mm
Material
NdFeB
Grade
N42
Size
25x20x8mm
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Thru Thickness
Weight
30.000g
Pull Force
28.02 lbs (12.74kg)
Thickness
C. 6.35-9.53mm
Length
F. 19.05-25.4mm
Width
F. 19.05-25.4mm

Inquiry

Please describe the product(s) which you would like to get more information/quotation about.
* These fields are required. Without such information, we are not able to process your inquiry. Our minimum order amount is USD300.
