25x25x25mm Block Magnets | B25x25x25mm

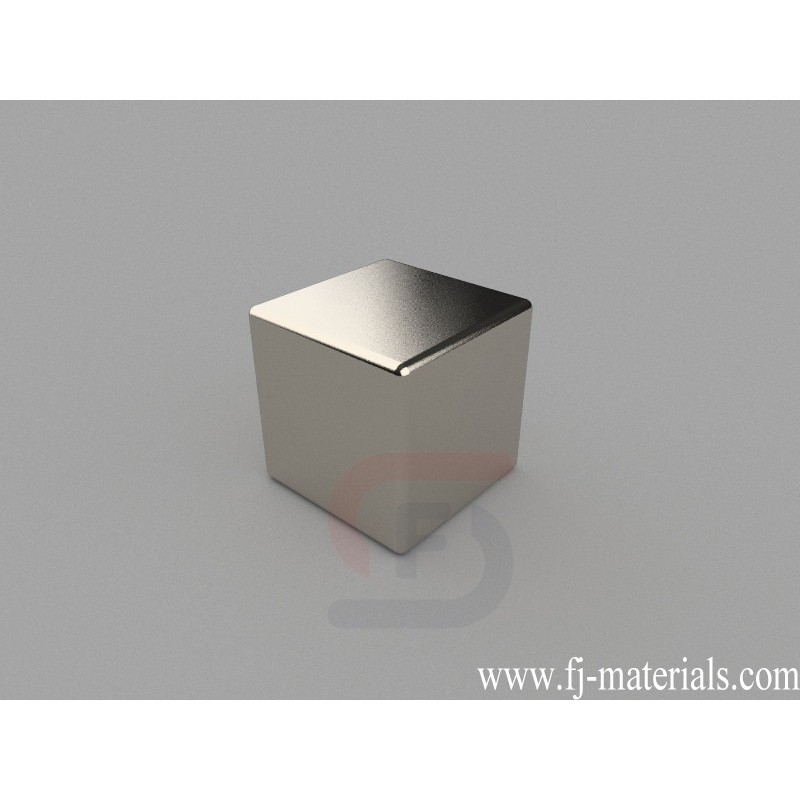

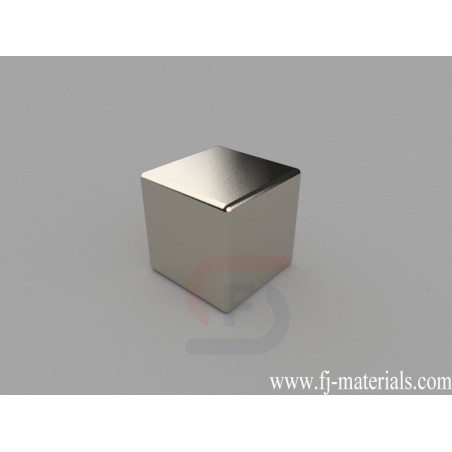

B25x25x25mm Neodymium Magnet, 25 x 25 x 25mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 25x25x25mm, Thru Thickness magnetized. Pull force is approximately 97.90 lbs (44.50kg).
B25x25x25mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 25x25x25mm, Ni-Cu-Ni (Nickel) coating. Pull force: 97.90 lbs (44.50kg). Magnetization direction: Through Thickness
B25x25x25mm Neodymium Magnet, 25 x 25 x 25mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 25x25x25mm, Thru Thickness magnetized. Pull force is approximately 97.90 lbs (44.50kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B25x25x25mm
Data sheet
- Item Number
- B25x25x25mm
- Material
- NdFeB
- Grade
- N42
- Size
- 25x25x25mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 117.188g
- Pull Force
- 97.90 lbs (44.50kg)
- Thickness
- F. 19.05-25.4mm
- Length
- F. 19.05-25.4mm
- Width
- F. 19.05-25.4mm
B25x25x25mm Neodymium Magnet, 25 x 25 x 25mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 25x25x25mm, Thru Thickness magnetized. Pull force is approximately 97.90 lbs (44.50kg).
