25x25x5mm Block Magnets | B25x25x5mm

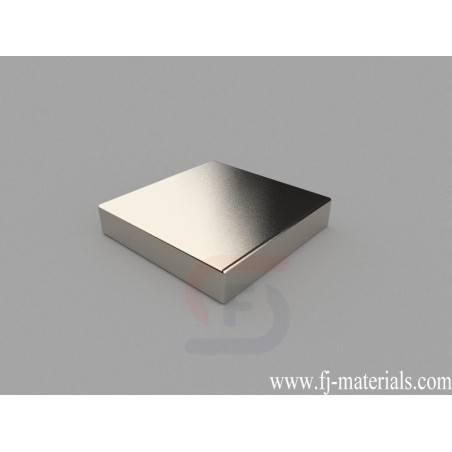

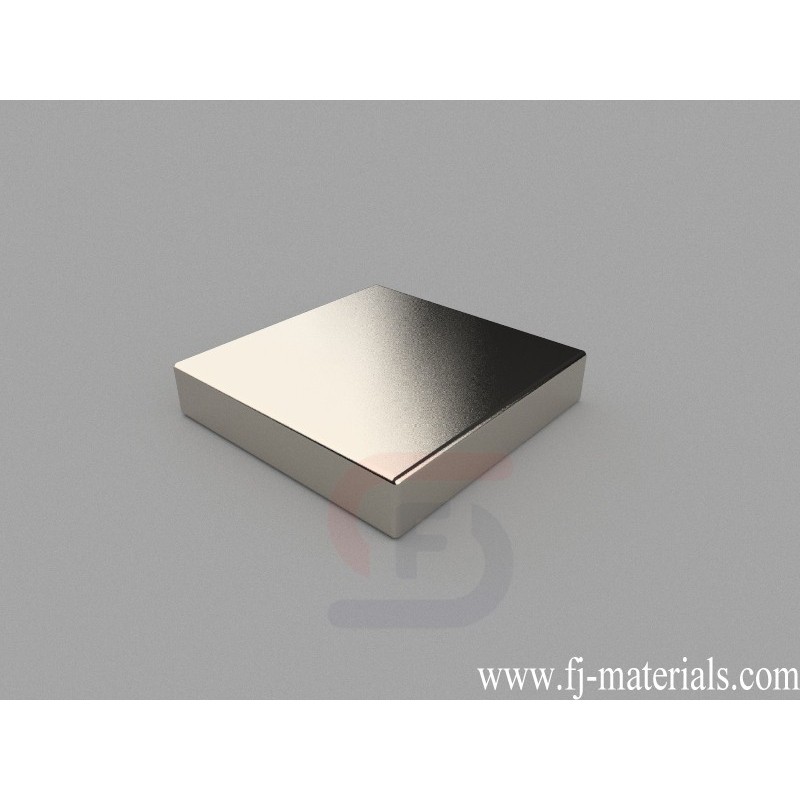

B25x25x5mm Neodymium Magnet, 25 x 25 x 5mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 25x25x5mm, Thru Thickness magnetized. Pull force is approximately 19.58 lbs (8.90kg).
B25x25x5mm Neodymium Block Magnet is made from high perfermance N42 NdFeB. The dimesion is 25x25x5mm, Ni-Cu-Ni (Nickel) coating. Pull force: 19.58 lbs (8.90kg). Magnetization direction: Through Thickness
B25x25x5mm Neodymium Magnet, 25 x 25 x 5mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 25x25x5mm, Thru Thickness magnetized. Pull force is approximately 19.58 lbs (8.90kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B25x25x5mm
Data sheet
- Item Number
- B25x25x5mm
- Material
- NdFeB
- Grade
- N42
- Size
- 25x25x5mm
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 23.438g
- Pull Force
- 19.58 lbs (8.90kg)
- Thickness
- B. 3.18-6.35mm
- Length
- F. 19.05-25.4mm
- Width
- F. 19.05-25.4mm
B25x25x5mm Neodymium Magnet, 25 x 25 x 5mm Block Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 25x25x5mm, Thru Thickness magnetized. Pull force is approximately 19.58 lbs (8.90kg).
