3/16 x 3/16 x 1/32 inch thick Block Magnets | B3301

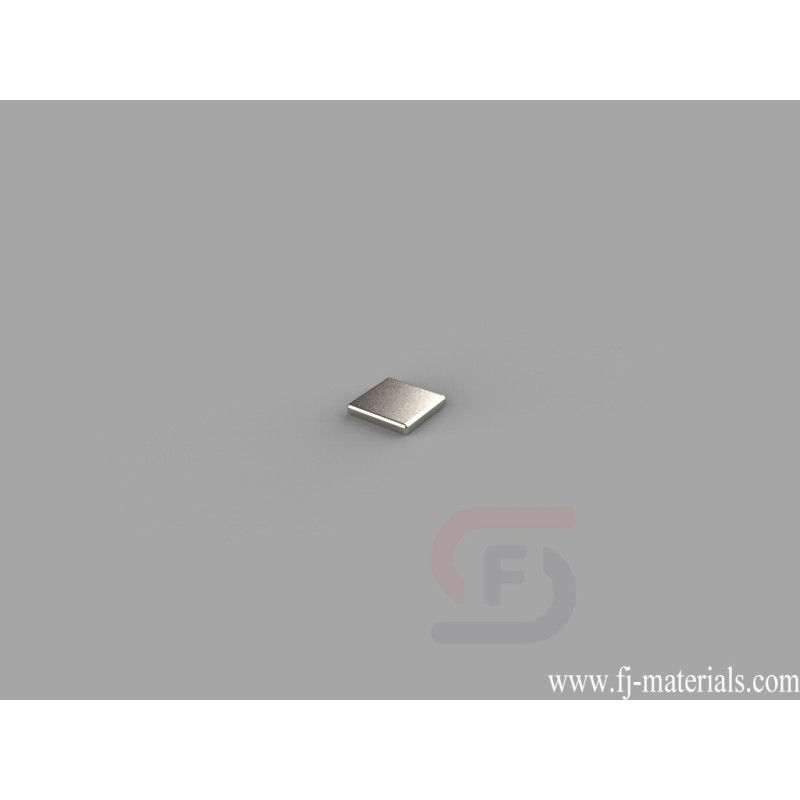

B3301 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/16" x 3/16" x 1/32" thick, Thru Thickness magnetized. Pull force is approximately 0.42 lbs.
Yiwu Fenjiao E-commerce Firm supply B3301 Neodymium Block Magnets with high quality at competitive price.
B3301 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/16" x 3/16" x 1/32" thick, Thru Thickness magnetized. Pull force is approximately 0.42 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
B3301
Data sheet
- Item Number
- B3301
- Material
- NdFeB
- Grade
- N42
- Size
- 3/16" x 3/16" x 1/32" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.00476 oz. (0.135 g)
- Pull Force
- 0.42 lbs
- Thickness
- A. 0.00-3.18mm
- Length
- B. 3.18-6.35mm
- Width
- B. 3.18-6.35mm
B3301 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/16" x 3/16" x 1/32" thick, Thru Thickness magnetized. Pull force is approximately 0.42 lbs.
